Stuart Turner MainsBoost iBoost F200-100-45 CAT 5 Home Booster
The Stuart Turner Mainsboost iBoost CAT 5 water pressure and flow boosting system features a weir overflow making it suitable for use in applications where the risk of backflow contamination from Category 5 fluids exists.
The iBoost F200 features a fixed speed pump control system capable of generating pressures of up to 4.5 bar and flow rates of up to 100 litres per minute.
- 200 litre capacity water storage tank with high flow, low noise equilibrium fill valve
- Slim and compact design
- Control panel and status indicators
- Simple installation and set up
- Dry run protection
Application
Boosting water pressure and flow in laboratories, stables, kennels, waste bin stores and wash down stations

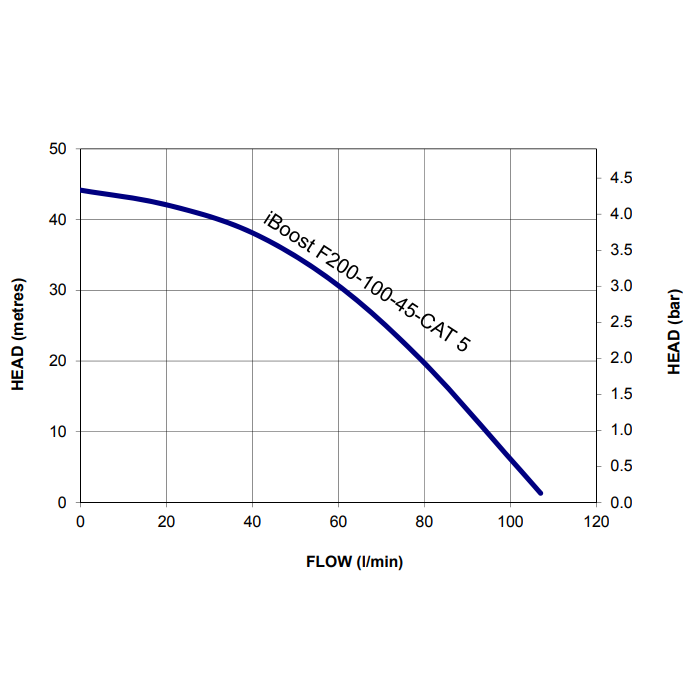

| Max Flow ltrs/min | Max Head metres | Tank Size litres |
| 100 | 45 | 200 |
| Product Type | Home Booster Set |
|---|---|
| Booster Type | Cat 5 |
| Custom Shipping | 0.000000 |
| Manufacturer | Stuart Turner |
| Model Range | MainsBoost iBoost Range |
| Warranty | 3 Year Warranty |

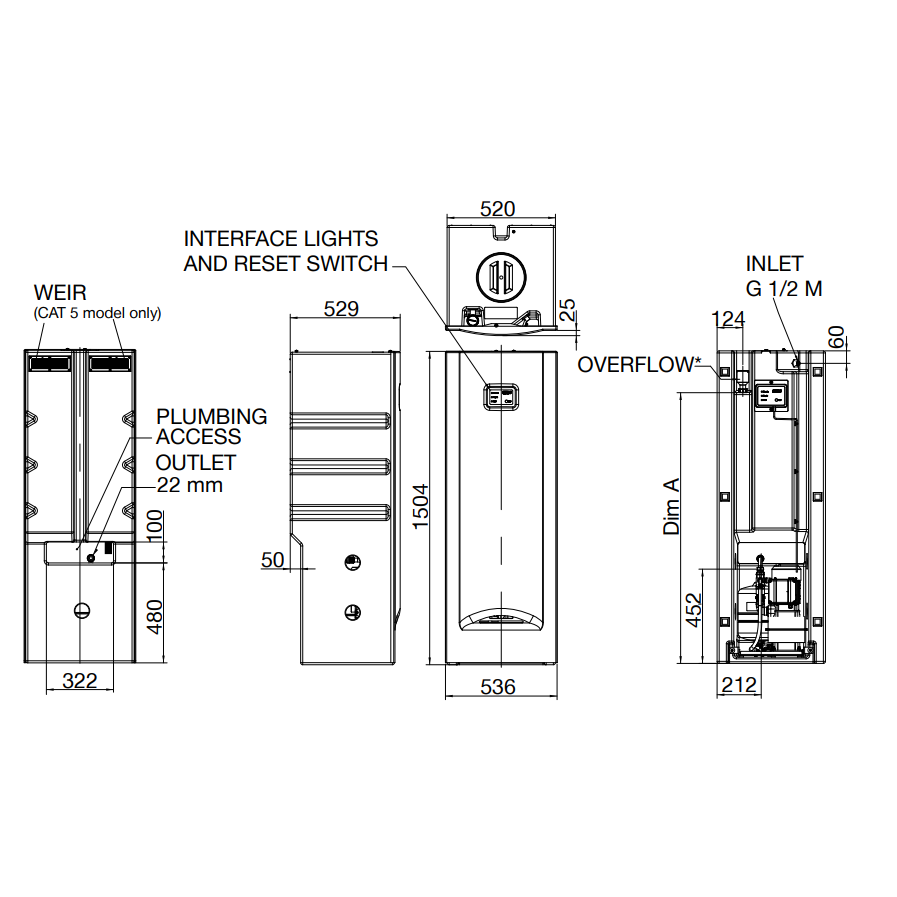

| Dimensions | 536 x 532 x 1504mm (WxDxH) |
| Noise Rating | 62 dB(A) |
| Volume / Capacity | 200 Litre |
| Max Flow | 100l/m |
| Max Head | 45m |
| Product Code | 46677 |
| Positioning | Floor standing |
| System Type | Category 5 |
| Pump Quantity | 1 Pump |
