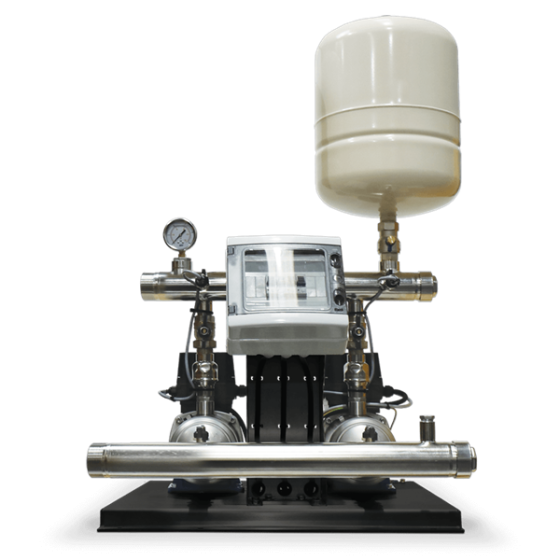

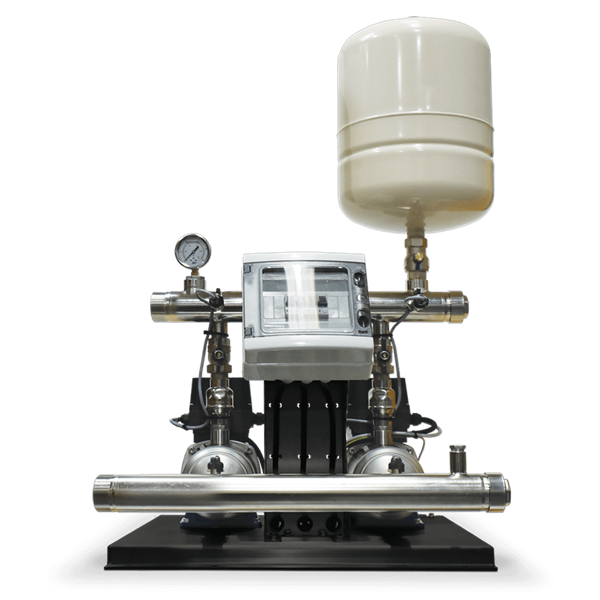

Flowtech Flowboost AH2-0303-007-M Twin Pump Cold Water Booster Set
The Flowtech Flowboost AH2 booster set range (formerly known as Aquaboost VARiFLO) is constructed with WRAS-approved components. It features two stainless steel multistage pumps, all securely mounted on a durable, powder-coated steel base plate.
The Flowboost AH2 booster set features a precision-engineered multistage pumps managed by advanced variable speed controllers, ensuring stable, efficient water flow even under heavy demand.
Specification
- Max operating flow (per pump): 1.6 l/s
- Max operating pressure: 3 bar
- Closed valve pressure: 3.3 bar
- Maximum system pressure rating: 10 bar
- Maximum system temperature: 23 °C
- Pressure vessel(s): 1 x 24 litres
- IP rating: IP55
- Per pump Current @ Full Load: 4.6 A
- Total Current @ Full Load: 9.2 A
- Supply voltage: 230v
- Electrical phase: 1
Features
- Variable speed pumps control
- Volt free contacts
- Dry run protection
- Duty-assist and duty-standby modes
- 304/316 Stainless steel manifold assembly
- Suitable for a single phase 230 volt supply
- Air cooled inverters
- External low water level facility
- Pressure vessel with flow through isolation & drain valve
- Robust steel powder coated base, compact size
- AV mounts & Flexible connectors optional
- 2 Year Warranty
- Minimum pressure alarm
- Safety start (slow fill mode)
| Product Type | Booster Sets |
|---|---|
| Product Code | 10-006778-000 |
| Manufacturer | Flowtech |
| Model Range | AH |
| Booster Type | Twin Pump |
| Warranty | 2 Year Warranty |

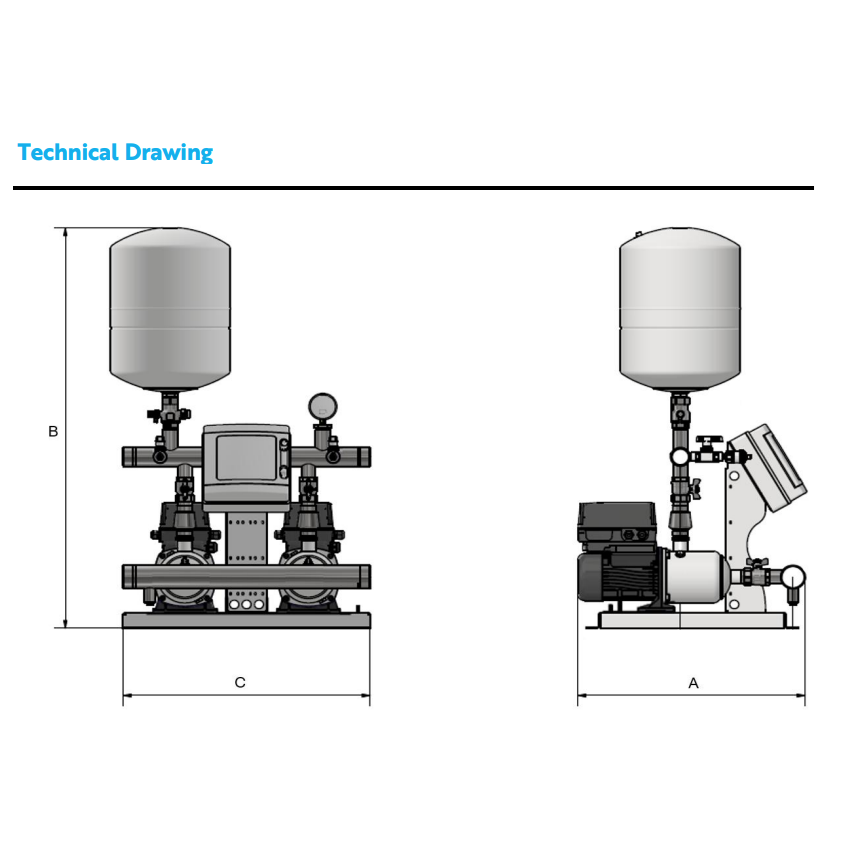

| Dimensions | 506mm x 1000mm x 600mm (A x B x C) |
| Inlet Connection | 2'' Threaded |
| Outlet Connection | 1 1/2" Threaded |
| Positioning | Floor standing |
| System Type | Potable (Drinking) |
| Kw Rating | 0.75 kW |
| Power Supply | 220V-240V Single Phase |
| Max Flow | 1.6 l/s per pump |
| Max Head | 3 bar |
| Variable Speed | Yes |
| Pump Quantity | 2 Pump |
