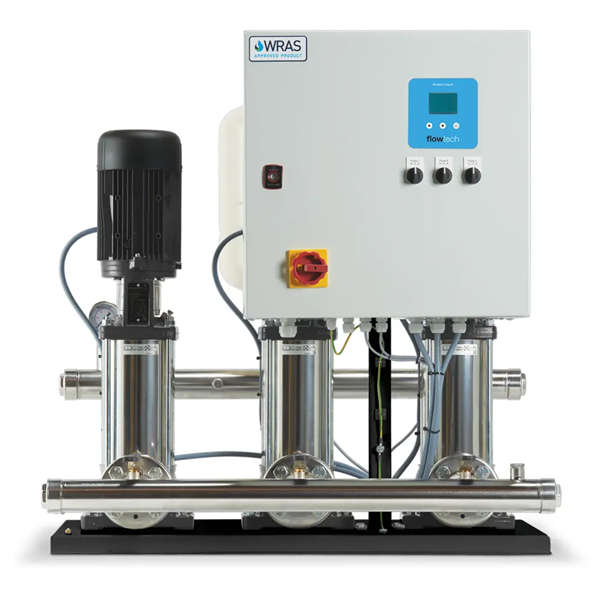

Flowtech Flowboost AV3-0306-005M-MAB Three Pump Cold Water Booster Set
The Flowtech Flowboost AV3 booster set range (formerly known as Aquaboost MAB Vertical) is constructed with WRAS-approved components. It features three stainless steel multistage pumps, all securely mounted on a durable, powder-coated steel base plate.
The Flowboost AV3 booster set features a precision-engineered multistage pumps managed by advanced variable speed controllers, ensuring stable, efficient water flow even under heavy demand.
Specification
- Max operating flow (per pump): 1 l/s
- Max operating pressure: 3.9 bar
- Closed valve pressure: 4.4 bar
- Maximum system pressure rating: 10 bar
- Maximum system temperature: 23 °C
- Pressure vessel(s): 1 x 24 litres
- IP rating: IP44
- Per pump Current @ Full Load: 3.2 A
- Total Current @ Full Load: 9.6 A
- Supply voltage: 230v
- Electrical phase: 1
Features
- Controlled by the advanced MAB variable speed control panel
- Volt free contacts
- Dry run protection
- Duty-assist-assist and duty-assist-standby modes
- 304/316 Stainless steel manifold assembly
- Suitable for a single phase 230 volt supply
- Air cooled inverters
- External low water level facility
- Pressure vessel with flow through isolation & drain valve
- Robust steel powder coated base, compact size
- AV mounts & Flexible connectors optional
- 2 Year Warranty
- Minimum pressure alarm
- Safety start (slow fill mode)
| Product Type | Booster Sets |
|---|---|
| Product Code | 10-007127-000 |
| Manufacturer | Flowtech |
| Model Range | AV |
| Booster Type | Three Pump |
| Warranty | 2 Year Warranty |
| Dimensions | 900mm x 850mm x 1035mm (C x E x H) |
| Inlet Connection | 2'' Threaded |
| Outlet Connection | 2'' Threaded |
| Positioning | Floor standing |
| System Type | Potable (Drinking) |
| Kw Rating | 0.55 kW |
| Power Supply | 220V-240V Single Phase |
| Max Flow | 1 l/s per pump |
| Max Head | 3.9 bar |
| Variable Speed | Yes |
| Pump Quantity | 3 Pump |
