Grundfos GT-H 24 Litre Expansion Vessel - 10 Bar Horizontal

Product Code: 96528388
Grundfos GT-H 24 Litre Expansion Vessel - 10 Bar Horizontal

Regular Price: £80.00

Special Price £72.00 ex. VAT £86.40 inc. VAT

OR

Want to speak to us?

Open 8.30am - 5pm Mon to Fri

Order by phone and get advice.

Freephone 0333 323 2329

Description

Grundfos GT-H 24 Litre Expansion Vessel - 10 Bar Horizontal

Grundfos GT-H 24 Litre Expansion Vessel - 10 Bar Horizontal

The Grundfos GT expansion vessel for cold-water applications are long-life tanks ideally suited for controlling the pressure in domestic as well as industrial applications.

GT tanks can be integrated in many different systems with a wide variety of pumps. The large number of tank sizes and types available makes it possible to select the pressure tank that best suits the application and system in question

GT-H (diaphragm) the polypropylene liner combined with an FDA approved high-grade butyl diaphragm makes up the water chamber. This is held against the tank wall with a steel clench ring. The brass air valve, sealed by a threaded O-ring valve cap, prevents air leaks.

Applications
  • Domestic water supply systems
  • Booster systems
  • Irrigation systems
  • Industrial systems.
Product Downloads
Specification
SKU 96528388
Weight (kg) 6.3000

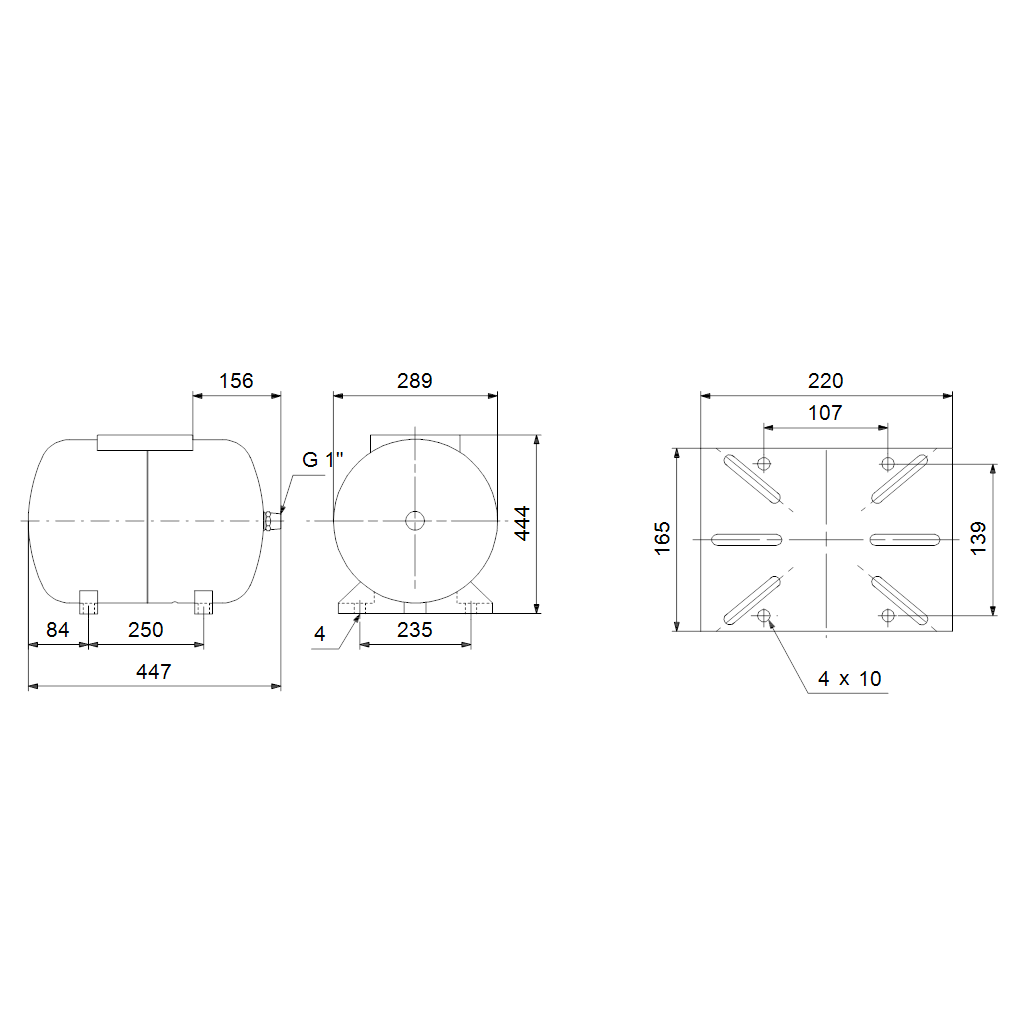

Dimensions 447 x 444mm
Volume / Capacity 24 Litre
GTIN 5700397134191
Material Carbon steel / Polypropylene
Connection Type 1"
Orientation Horizontal
System type Potable (Drinking)
Vessel Pre-Charge Pressure 1.9 bar
Max. Pressure 10 bar
Max. Temperature 90°C
