Grundfos Hydro Multi-E 2 CME 10-3 Twin Pump Booster Set

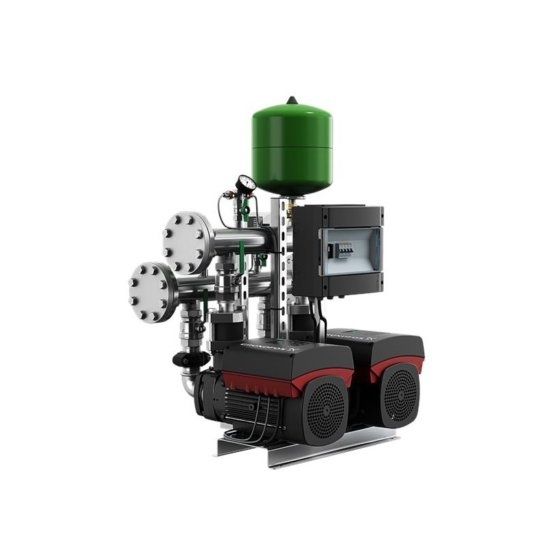

Grundfos Hydro Multi-E 2 CME 10-3, 3 X 400V Twin Pump Booster Set

Engineered for reliable pressure boosting and clean water transfer, the Grundfos Hydro Multi-E is the go-to solution for high-demand environments like hotels, hospitals, and industrial facilities. This high-performance system features two CME pumps configured in parallel for seamless redundancy and power. Pre-mounted on a heavy-duty base frame with all essential fittings included, it arrives ready for a streamlined installation.

The Hydro Multi-E is built for durability and precision, featuring a robust stainless steel base frame (DIN W.-Nr. 1.4301). This system is fully equipped with high-grade components to ensure immediate, reliable operation:

• Suction Side: Includes a premium stainless steel manifold, an isolating valve, and a pressure switch mounted on a specialised drainable valve for easy maintenance.
• Discharge Side: Optimised for performance with a non-return valve, isolating valve, pressure gauge, and a diaphragm tank. It features dual pressure transmitters and a stainless steel discharge manifold.
• Comes standard with an integrated on/off switch for the main supply voltage.

The Hydro Multi-E is engineered to maintain a perfectly constant water pressure, regardless of how many taps are running or how much the demand fluctuates.

Thanks to an intelligent internal PI-controller, the system automatically adjusts in real-time—varying pump speeds and activating additional pumps only when needed. This ensures maximum comfort and significant energy savings by never using more power than the job requires. The system can be operated directly on the panel of any of the pumps or via Grundfos GO (available as accessory).


Additional features:

• 2 Digital outputs
• 2 Digital inputs (one used for dry run protection)
• 2 Analogue inputs (one used for discharge pressure sensor)
• Multi-Master functionality
• 2 Limit functions
• Set-point influence function
• Pipe filling function
• High Efficient PM motors


When delivered, the GRUNDFOS Hydro Multi-E booster set is factory tested and ready for operation. Please note, this product is exempt from standard 2-3 day delivery and next day delivery. To find out lead times, contact our sales team on 0333 323 2329.
