Grundfos Hydro Multi-E 3 CME 10-3 Three Pump Booster Set

Grundfos Hydro Multi-E 3 CME 10-3 Three Pump Booster Set

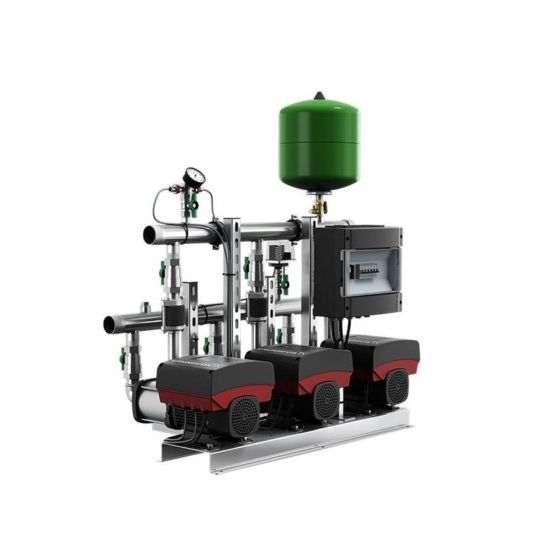

Grundfos Hydro Multi-E booster sets are built to transfer and increase the pressure of clean water across various applications, including waterworks, apartment buildings, hotels, industrial facilities, hospitals, and schools. This system features 3 parallel-coupled CME pumps, all securely mounted on a shared base frame that includes all essential fittings.

Specification

Hydro Multi-E is mounted on a common base frame made of stainless steel (DIN W.-Nr. 1.4301). On the suction side are fitted a suction manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571) , a pressure switch mounted on a drainable valve and an isolating valve. On the discharge side of the pumps are fitted a non-return valve, an isolating valve, a pressure gauge, two pressure transmitters mounted on a drainable valve, a diaphragm tank and a stainless steel discharge manifold (DIN W.-Nr. 1.4401 or DIN W.-Nr. 1.4571). The Hydro Multi-E is fitted with an on/off-switch for the supply voltage.

• The Hydro Multi-E is designed for maintaining a constant pressure regardless of flow changes and fluctuation.
• The internal PI-controller regulates the number of running pumps and the speed of the pumps according to the required flow.
• The system can be operated directly on the panel of any of the pumps or via Grundfos GO (available as accessory).

Additional Features

• 2 Digital outputs
• 2 Digital inputs (one used for dry run protection)
• 2 Analogue inputs (one used for discharge pressure sensor)
• Multi-Master functionality
• 2 Limit functions
• Set-point influence function
• Pipe filling function
• High Efficient PM motors

When delivered, the GRUNDFOS Hydro Multi-E booster set is factory tested and ready for operation.
