Grundfos UP 20-15N (150) Hot Water Service Circulator

Grundfos UP 20-15N (150) Hot Water Service Circulator

Name: Grundfos UP 20-15N (150) Hot Water Service Circulator
Brand: Grundfos
SKU: 98057205
Price: 419.28 GBP
Availability: InStock

SKU

98057205

Special Price £419.28 £349.40 Regular Price £618.00 £515.00

Check Delivery is available in your area:

Postcode

With an annual production of more than 16 million pumps; Grundfos Pumps UK are one of the world’s largest and best-known pump manufacturers. The company produces an incredible array of pumps for a range of different tasks including air conditioning, water supply, sewage and dosing. Perhaps best known for being the world’s largest manufacturer of circulating pumps, Grundfos currently account for 50% of the world’s market. Additionally, the company also produces ranges of standard and submersible motors, and state-of-the-art electronics for the controlling and monitoring of pump products. Established in 1945 in the Danish town of Bjerringbro, the company is now represented worldwide in more than 55 countries. Additionally, Grundfos products are available in a large number of other countries through independent suppliers. Grundfos is dedicated to helping the pump and industry progress, constantly innovating and refining products. With added sustainability incentives, Grundfos are dedicating significant amounts of time to producing sustainable solutions to problems faced by the pump market. Understanding the changing nature of the world; Grundfos are continuing research into effective and efficient pump solutions. Grundfos have been operating the UK for 50 years now, employing more than 150 members of staff at their Leighton Buzzard base. We are Grundfos supplier with a huge range including Grundfos central heating pumps, Grundfos home booster pumps, shower pumps and much more.

Free Standard Delivery On Most Products Over £100 ex VAT

SERVICE & MAINTENANCE

2 Year Warranty

Need help with your order?

Call us today 0333 323 2329

Product Description

Grundfos UP 20-15N (150) Hot Water Service Circulator

The pump is a canned rotor type, which means that the motor and pump work as one cohesive unit without a shaft seal and with just two sealing gaskets. The pumped liquid lubricates the bearings. Pump features include:

Ceramic shaft and radial bearings
Carbon axial bearing
Stainless steel rotor can and bearing plate
Corrosion-resistant impeller, Composite, PES/PP
Stainless steel pump housing

The motor is a 1-phase motor. No additional motor protection is required.

Specification:

Maximum operating pressure: 10 bar
Type of connection: G
Size of connection: 1 1/4 inch
Pressure rating for connection: PN 10

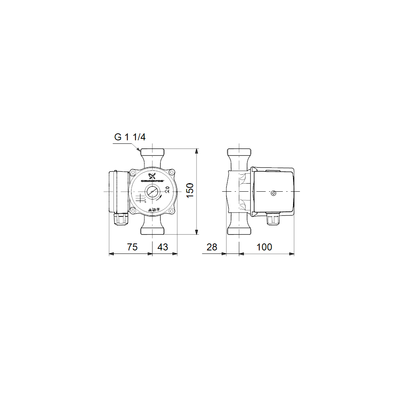

Port-to-port length: 150 mm

Union sets, valves and flange sets for pumps supplied with no fittings/flanges are listed separately and need to be ordered as an extra item.

Specification

More Information
Product Type	Hot Water Circulation Pump
Custom Shipping	0.000000
Manufacturer	Grundfos
Warranty	2 Year Warranty
Power Supply	220V-240V Single Phase
Kw Rating	65W
Product Code	98057205
Material	Stainless steel pump housing
Port-to-Port Distance (mm)	150
