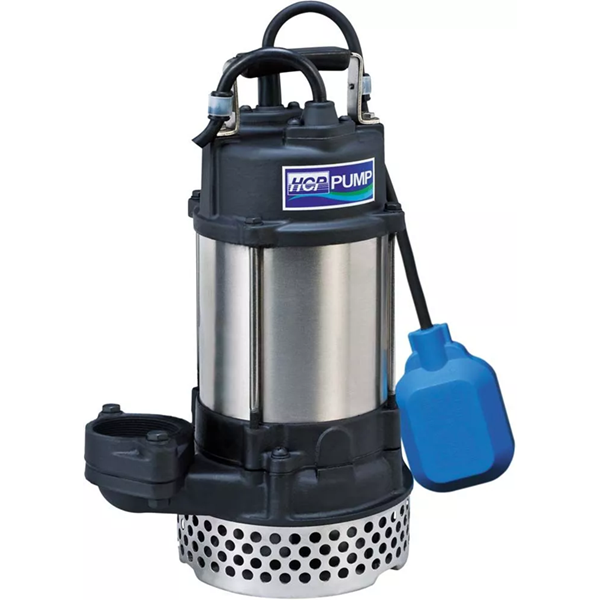

HCP A-05AF Submersible Wastewater Pump (1 Phase)
The A/AN series features a precision-engineered motor built to the highest quality control standards. Each rotor undergoes advanced heat-treatment for secure drive-shaft assembly, while the stator windings are impregnated with varnish and heat dried in an industrial oven to ensure maximum durability. Engineered for submersion, the range boasts an IP68 water-resistance rating.
Driven by HCP’s professional assembly line and rigorous synthesised production testing, every pump guarantees peak performance and long-term reliability. This model can handle solids 7.5mm in size.
Standard Features Include:
- Heavy-duty cable with an epoxy-resin sealed, water-resistant base
- Built-in Auto-cut thermal protector
- Dual mechanical seals paired with an additional lip seal design
| Product Type | Submersible Wastewater Pumps |
|---|---|
| Product Code | HCP-0A02204120AFHEF020 |
| Delivery Estimate | In stock |
| Manufacturer | HCP Pumps |
| Model Range | A/AN Range |
| Dimensions | 225 x 161 x 349mm (AxCxD) |
| Outlet Connection | 2'' Threaded |
| Kw Rating | 0.4 kW |
| Power Supply | 220V-240V Single Phase |
| Max Flow | 3.7 l/s |
| Max Head | 11m |
