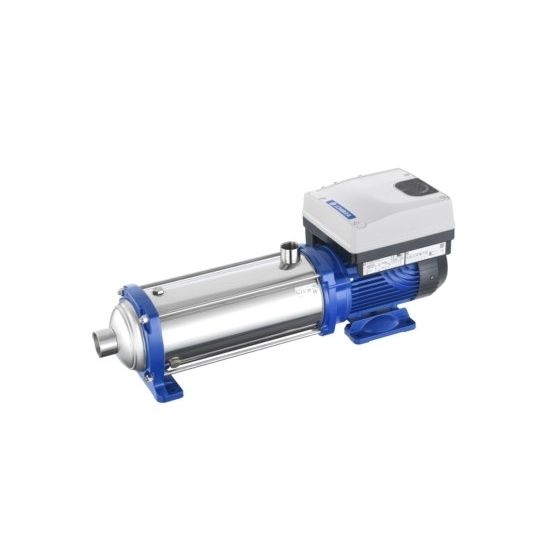

Lowara 1HME11S07M02QBE Horizontal Multistage Pump
The HME pump is a non-self priming horizontal multistage pump coupled with eSM drive. The pump casing is available with different configurations and connection types.
Please note that e-SM variable speed drive pumps are supplied complete with pump, integrated drive, pressure transmitter, cable & plug.
Main features pump
- Flowrate: up to 29 m3/h
- Head: up to 155 m
- Environment temperature: 0 ° C to + 50 ° C with no performance derating
- Temperature of pumped liquid: up to + 120 ° C for single-phase motor versions
- Maximum operating pressure 16 bar (PN 16)
Main features motor
- Synchronous electric motor with permanent magnets (TEFC), closed structure, air-cooled
- Protection class IP55
- Insulation class 155 (F)
- Overload protection and locked rotor with automatic reset incorporated
| Product Type | Horizontal Multistage Pumps |
|---|---|
| Calculate Shipping | Per Product Quantity |
| Product Code | 104630031 |
| Enable Shipping Per Product | No |
| Shipping For Product | 0.000000 |
| Manufacturer | Lowara |
| Model Range | e-HME |
| Warranty | 1 Year Warranty |
| Kw Rating | 0.75 |
| Power Supply | 220V-240V Single Phase |
