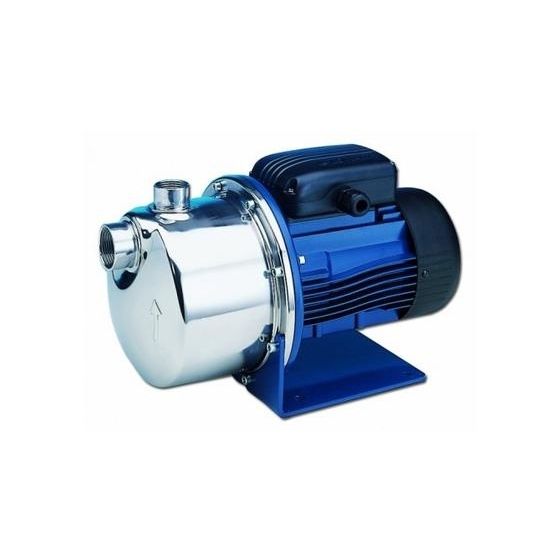

Lowara BG 3/A Centrifugal Pump (3 Phase)

Name: Lowara BG 3/A Centrifugal Pump (3 Phase)
Brand: Lowara
SKU: 107320060
Price: 704.76 GBP
Availability: InStock

SKU

107320060

Special Price £704.76 £587.30 Regular Price £1,006.80 £839.00

Check Delivery is available in your area:

Postcode

Lowara pumps UK is another member of the Xylem family, specialising in water booster sets, pressurisation units and pumps. All Lowara products comply with the high standards of research, design and manufacturing that is consistent throughout all of the Xylem brands. The top-quality products ensure a consistently high level performance. Lowara products are capability of performing a wide range of tasks; from boosting the water pressure on domestic and commercial properties to producing artificial ice for the World Ice Hockey Championships. The company’s engineering team have a wide ranging technical understanding of water technology. As a member of the Xylem family, the Lowara team have access to a wealth of technical knowledge, and research and development. This has helped Lowara produce a wide range of high quality pump products and water pressure solutions. This in-depth knowledge also ensures that the Lowara team are well-positioned to help with customer enquiries and problems. The dedicated customer services team are equipped with far-reaching knowledge and will always endeavour to help any commercial or domestic problems faced before and after the completion of the any sale. Lowara produces water booster sets for both home and commercial use. The home booster sets have a modern, contemporary design and simple-to-use functionality, making it easy for anybody to address their problems with water pressure. For larger commercial needs, the company also produces heavy duty, three-pump booster sets, capable of increasing water pressure in large quantities. Their far-ranging products are designed to assist with sites and buildings of all sizes receive the solution to their water pressure problems. We stock Lowara pressure pumps, vertical & horizontal multistage pumps, booster pumps, Lowara central heating pumps and more.

Free Standard Delivery On Most Products Over £100 ex VAT

SERVICE & MAINTENANCE

1 Year Warranty

Need help with your order?

Call us today 0333 323 2329

Product Description

Lowara BG 3/A Centrifugal Pump (3 ph)

Self-priming close-coupled centrifugal pumps with built-in ejector system, designed to remain primed even in the presence of water-dissolved gases. The extensive use of pressed stainless steel ensures a high-performance, durable and lightweight pump. Suitable for use with drinking water. “Garden” version, available with handle, terminal box with incorporated switch.

Applications

Water distribution
Pressure boosting
Irrigation
Washing
Rain water collection
Swimming pools
Fountains

Specifications

Delivery: up to 4.20 m³/h
Head: up to 53 m
Power supply: both single and three-phase 50 and 60 Hz
Power: from 0.37 kW up to 1.10 kW
Maximum operating pressure: 8 bar
Temperature of pumped liquid: from -10 °C to 40 °C

Materials

Pump body: Stainless steel
Impeller: Stainless steel
Diffuser: Technopolymer
Ejector: Technopolymer
Seal housing: Stainless steel
Mechanical seal: Ceramic/Carbon/EPDM
Fill and drain plugs: Nickel-plated brass
Elastomers: EPDM

Hydraulic performance table

	Rated Power	Rated Power	l/min 0	10	20	30	40	80	60	65	70
Pump Type	kW	HP	m3 /h 0	0,6	1,2	1,8	2,4	3	3,6	3,9	4,2
BG(M) 3	0,37	0,5	36,9	30,6	25,6	21,5	17,7	13,8

Q = DELIVERY

H = TOTAL HEAD IN COLUMN OF WATER (METRES)

Electrical data

Pump type	Motor type	Input power*	*Input current 220-240V**	*Input current 380-415 V**
3 ~		kW	A	A
BG3	SM63BG/304	0,68	2,56	1,48

*Maximum value in specified range

Specification

More Information
Product Type	Centrifugal Pumps
Custom Shipping	0.000000
Manufacturer	Lowara
Model Range	BG
Warranty	1 Year Warranty
Power Supply	400V-415V Three Phase
Kw Rating	0.37
Product Code	107320060
