Lowara BGM 7/A Centrifugal Pump (1 Phase)

SKU
107320A20
Special Price £764.40 £637.00 Regular Price £1,092.00 £910.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

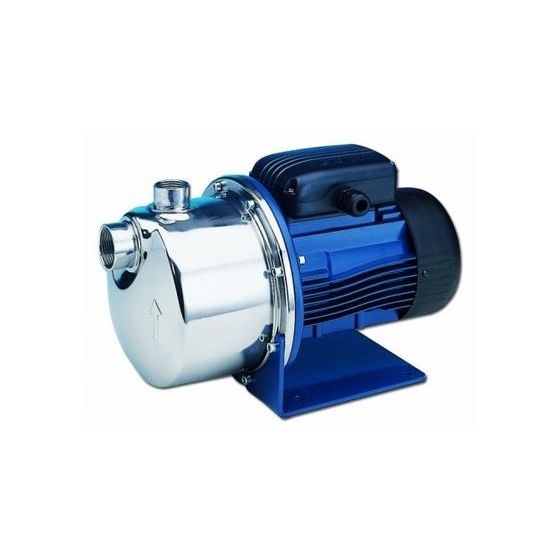

Lowara BGM 7/A Centrifugal Pump (1 ph)

Self-priming close-coupled centrifugal pumps with built-in ejector system, designed to remain primed even in the presence of water-dissolved gases. The extensive use of pressed stainless steel ensures a high-performance, durable and lightweight pump. Suitable for use with drinking water. “Garden” version, available with handle, terminal box with incorporated switch.

Applications

  • Water distribution
  • Pressure boosting
  • Irrigation
  • Washing
  • Rain water collection
  • Swimming pools
  • Fountains

Specifications

  • Delivery: up to 4.20 m³/h
  • Head: up to 53 m
  • Power supply: both single and three-phase 50 and 60 Hz
  • Power: from 0.37 kW up to 1.10 kW
  • Maximum operating pressure: 8 bar
  • Temperature of pumped liquid: from -10 °C to 40 °C

Materials

  • Pump body: Stainless steel
  • Impeller: Stainless steel
  • Diffuser: Technopolymer
  • Ejector: Technopolymer
  • Seal housing: Stainless steel
  • Mechanical seal: Ceramic/Carbon/EPDM
  • Fill and drain plugs: Nickel-plated brass
  • Elastomers: EPDM

​Hydraulic performance table

  Rated Power Rated Power l/min     0 10 20 30 40 80 60 65 70
Pump Type kW HP m3 /h    0 0,6 1,2 1,8 2,4 3 3,6 3,9 4,2
BG(M) 7 0,75 1 45,4   38,1 34,8 31,7 28,6 25,6

​Q = DELIVERY

H = TOTAL HEAD IN COLUMN OF WATER (METRES)

Electrical data

Pump type Motor type              Input power* Input current* 220-240V CAPACITOR
1 ~   kW A μ V 054 / F
BGM7 SM71BG/1075 1,11 5,00 20

​*Maximum value in specified range



More Information
Product Type Centrifugal Pumps
Custom Shipping 0.000000
Manufacturer Lowara
Warranty 1 Year Warranty
Power Supply 220V-240V Single Phase
Kw Rating 0.75
Product Code 107320A20
Orientation Horizontal
