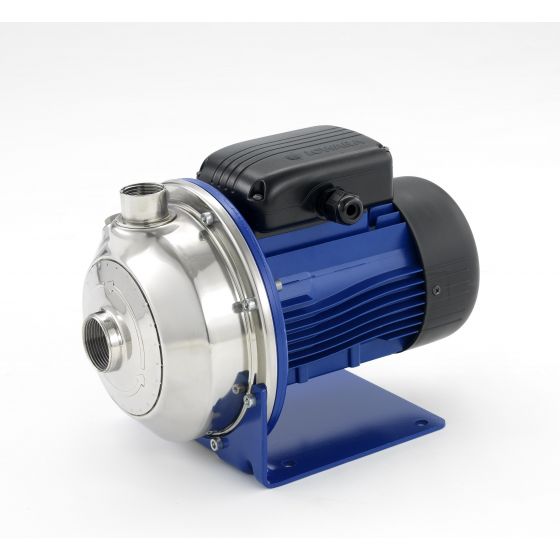

Lowara CEAM 210/2-V/A Centrifugal Pump (1 phase)
Single-impeller centrifugal electric pump
Pump Coupling Motor
Close-coupled, single-impeller centrifugal pump featuring axial suction and radial discharge.
Construction Features
Compact construction, with pump coupled directly to motor; special motor shaft extension in common with the pump and supported by ball bearings.
Rotating assembly with back pull-out design, eliminating the need to disconnect the pump body from the pipe line.
Threaded suction and discharge ports (Rp UNI - ISO 7).
Applications
Version made of AISI 304
• Handling of chemically and mechanically non-aggressive water and liquids (*).
• Water supply.
• Irrigation.
• Water circulation (cold, hot, refrigerated).
Range Specification
- Delivery: up to 31 m³/h
- Head: up to 62 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 3 kW
- Maximum operating pressure: 8 bar
- Temperature of pumped liquid: from -10 °C to 110 °C
Hydraulic performance table
| Rated Power | Rated Power | l/min 0 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 | 300 | |
| Pump Type | kW | HP | m3 /h 0 | 1,8 | 2,4 | 3,6 | 4,8 | 6 | 7,2 | 8,4 | 9,6 | 10,8 | 12 | 15 | 18 |
| CEA(M) 210/2 | 0,75 | 1 | 17,7 | 16,5 | 16,1 | 15,6 | 15 | 14,4 | 12,6 | 10,4 |
*Maximum value in specified range.
For more information and technical drawings, see the attached data sheet
| Product Type | Centrifugal Pumps |
|---|---|
| Manufacturer | Lowara |
| Model Range | CEAM |
| Warranty | 1 Year Warranty |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 0.75 |
| Product Code | 107330A50XAA |
| Orientation | Horizontal |
