Lowara CEAM 370/1-V/A Centrifugal Pump (1 Phase)

SKU
107330A70XAA
Special Price £2,084.88 £1,737.40 Regular Price £2,978.40 £2,482.00

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

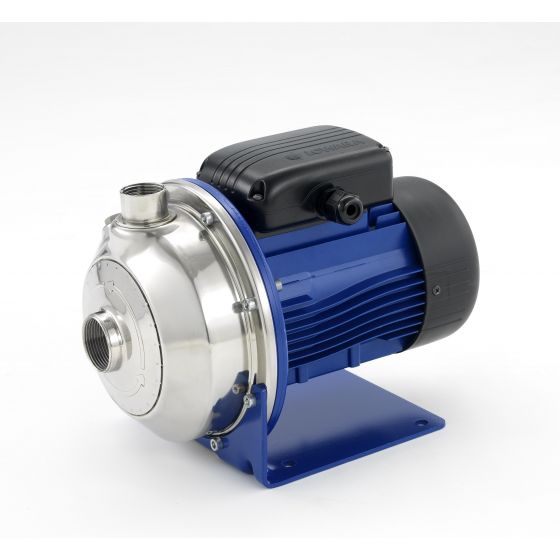

Lowara CEAM 370/1-V/A Centrifugal Pump (1 phase)

Single-impeller centrifugal electric pump

Pump Coupling Motor
Close-coupled, single-impeller centrifugal pump featuring axial suction and radial discharge.

Construction Features
Compact construction, with pump coupled directly to motor; special motor shaft extension in common with the pump and supported by ball bearings.
Rotating assembly with back pull-out design, eliminating the need to disconnect the pump body from the pipe line.
Threaded suction and discharge ports (Rp UNI - ISO 7).

Applications
Version made of AISI 304
• Handling of chemically and mechanically non-aggressive water and liquids (*).
• Water supply.
• Irrigation.
• Water circulation (cold, hot, refrigerated).

Range Specification

  • Delivery: up to 31 m³/h
  • Head: up to 62 m
  • Power supply: both single and three-phase 50 and 60 Hz
  • Power: from 0.37 kW up to 3 kW
  • Maximum operating pressure: 8 bar
  • Temperature of pumped liquid: from -10 °C to 110 °C

Hydraulic performance table

  Rated Power Rated Power l/min 0 30 40 60 80 100 120 140 160 180 200 250 300 350 400 430
Pump Type kW HP m3 /h 0 1,8 2,4 3,6 4,8 6 7,2 8,4 9,6 10,8 12 15 18 21 24 26
CEA(M) 370/1 1,1 1,5 16,3                 15,5 15,2 14,3 13 11,4 9,4 8,1

*Maximum value in specified range.

For more information and technical drawings, see the attached data sheet
