Lowara CEAM 370/2-V/A Centrifugal Pump (1 Phase)

SKU
107330B00XAA
Special Price £2,123.52 £1,769.60 Regular Price £3,033.60 £2,528.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

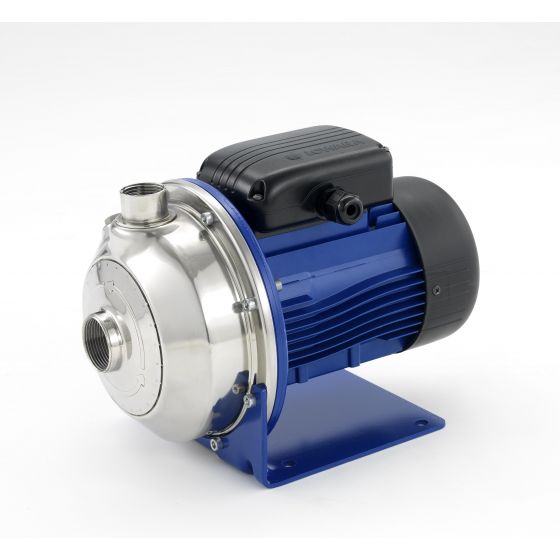

Lowara CEAM 370/2-V/A Centrifugal Pump (1 phase)

Single-impeller centrifugal electric pump

Pump Coupling Motor
Close-coupled, single-impeller centrifugal pump featuring axial suction and radial discharge.

Construction Features
Compact construction, with pump coupled directly to motor; special motor shaft extension in common with the pump and supported by ball bearings.
Rotating assembly with back pull-out design, eliminating the need to disconnect the pump body from the pipe line.
Threaded suction and discharge ports (Rp UNI - ISO 7).

Applications
Version made of AISI 304
• Handling of chemically and mechanically non-aggressive water and liquids (*).
• Water supply.
• Irrigation.
• Water circulation (cold, hot, refrigerated).

Range Specification

  • Delivery: up to 31 m³/h
  • Head: up to 62 m
  • Power supply: both single and three-phase 50 and 60 Hz
  • Power: from 0.37 kW up to 3 kW
  • Maximum operating pressure: 8 bar
  • Temperature of pumped liquid: from -10 °C to 110 °C

Hydraulic performance table

  Rated Power Rated Power l/min 0 30 40 60 80 100 120 140 160 180 200 250 300 350 400 430 480 520
Pump Type kW HP m3 /h 0 1,8 2,4 3,6 4,8 6 7,2 8,4 9,6 10,8 12 15 18 21 24 26 29 31
CEA(M) 370/2 1,5 2 20,4                   19,1 18,3 17,2 15,8 14,1 13 10,8

*Maximum value in specified range.

For more information and technical drawings, see the attached data sheet

More Information
Product Type Centrifugal Pumps
Custom Shipping 0.000000
Manufacturer Lowara
Warranty 1 Year Warranty
Power Supply 220V-240V Single Phase
Kw Rating 1.5
Product Code 107330B00XAA
Orientation Horizontal
