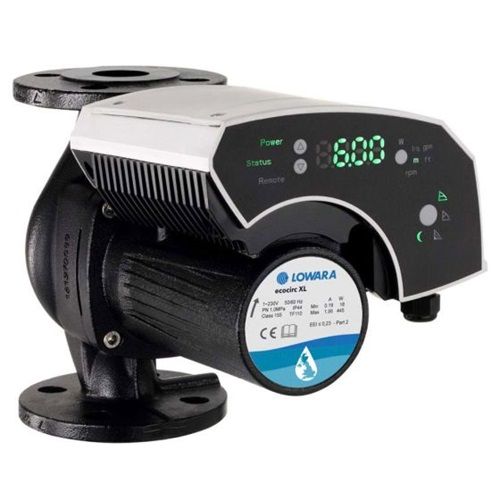

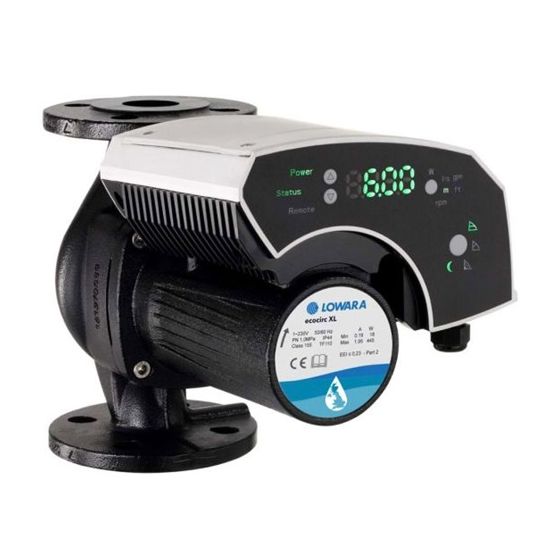

Lowara Ecocirc XLplus 40-100F Circulating Pump - Single Head

Lowara Ecocirc XLplus 40-100F Circulating Pump - Single Head

The ecocirc XL and XLplus circulators are engineered for simplicity and efficiency. They integrate cutting-edge hydraulics, motors, and intelligent controls in a user-friendly package. These wet rotor circulators provide the performance you need for large-scale applications.

Features

• High efficiency
• Different operation modes adopted to all real life situations
  • Automatic proportional pressure control (Δpv)
  • Constant pressure control (Δpc)
  • Differential temperature control (ΔT)
  • Manual set constant speed
  • Night mode
• Easy to install and start up, no advanced programming necessary
• Clear display and easy setting with touch buttons
• For hot and cold media including tap hot water
• Communicate with Modbus RTU and BACnet systems
• Can be controlled from a laptop, tablet or smartphone via built in WiFi.

Specification

• Single head models in cast iron or bronze
• Head up to 13 m
• Flow up to 60 m³/h
• Temperature range – 10°C – +110°C
