Pedrollo RXm 4-GM Submersible Drainage Pump (1 Phase)

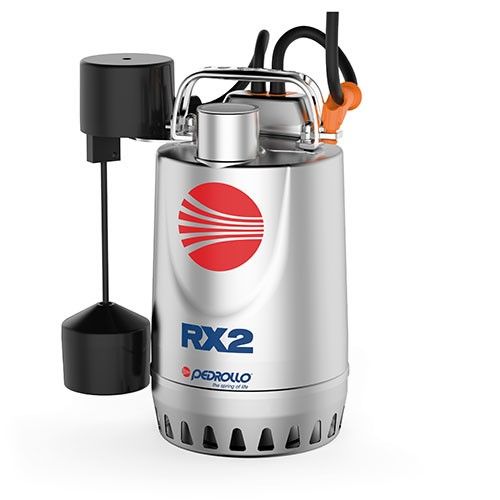

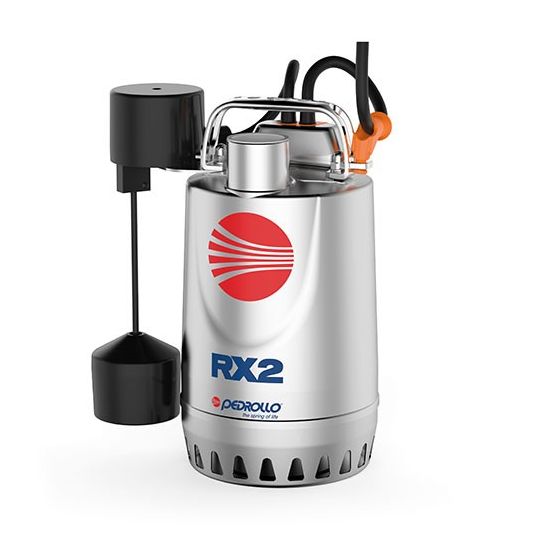

Pedrollo RXm 4-GM 1ph Submersible Drainage Pump with Vertical Magnetic Float Switch

The RX series pumps can be used with clear water free from abrasive particles. These pumps are simple to use and durable as a result of the design solutions adopted, such as the complete cooling of the motor and the shaft with a double seal. They can be used in fixed installations and for a variety of tasks, including draining minor flooded spaces (rooms, cellars, and garages) in an emergency, disposal of waste water from dishwashers and washing machines at home, and emptying drainage traps.

0.75 kW          20 - 260 Litres/min           15 - 4 Head (m)

Product Range Overview

• Power cable: 5 metres as standard for RX 1-3 GM models (10m available for an additional cost, please contact our Sales Team for more information). 10 metres as standard for RX- 4-5 GM models.
• Two mechanical seals separated by an oil chamber for RX 4-5 GM
• External float switch: standard issue
• Impeller: AISI 304 stainless steel

Attention: Standard EN 60335-2-41 requires the use of a 10 metre cable in outdoor applications

For performance curves and additional information; see linked data sheet(s).
