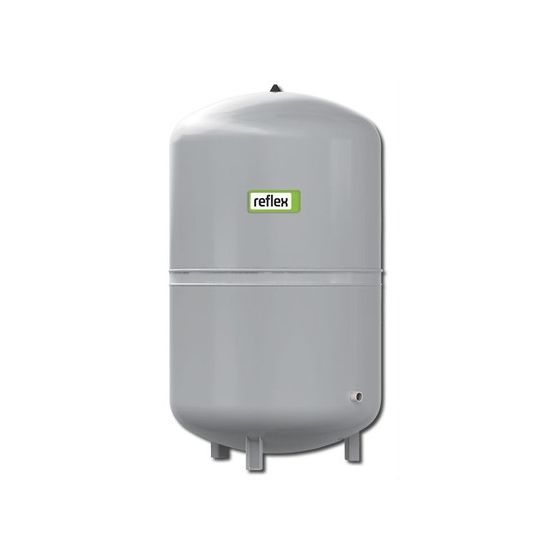

Reflex 400 Litre Vertical Expansion Vessel

Reflex 400 Litre Heating Expansion Vessel

Reflex (Vertical) Expansion Vessel

Product code: HV400W
£1234.03
£802.12
£962.54 inc. VAT
Save £431.91
Valid until 01/12/2017
Ship to:

Description

Reflex 400 Litre Vertical Expansion Vessel

Altecnic offer a complete range of expansion vessels to meet the requirements of PED 97/23/EC Directive and BS EN 13831:2007 ‘Closed expansion vessels with built in diaphragm for installation in water’.

The vessel is fabricated by welding the various sections together which results in a very reliable structure suitable for internal pressures up to 6 bar. Non-replaceable diaphragm Epoxy coated in grey. Suitable for flow temperatures up to 120˚C, resistant to ethylene or propylene glycol mixtures and has low gas permeability. Altecnic expansion vessels are all tested according to the Pressure Systems Directive.

How It Works.  In a closed heating system water cannot be compressed so any increase in volume, created by an increase in temperature, has to be accommodated by an expansion vessel.  When water is cold, the pre-charge pressure forces the diaphragm against the tank towards the inlet.

As the temperature increases, the expanded water volume pushes against the diaphragm creating additional volume for the water to enter.  When the temperature decreases, the pre-charge pressure forces the water from the tank and back into the main heating system.  This maintains a constant pressure within the heating system helping to reduce energy consumption.

Max. working pressure 6 bar

Max. flow operating temperature 120˚C

Max. vessel operating temperature 70˚C

Factory pre- charge 1.5 bar - nitrogen

HV
L
Ø
mm
Height
mm
Joint
size
Weight
kg
Max
Pressure
400W
400L
740 1090 1" 65 6Bar
