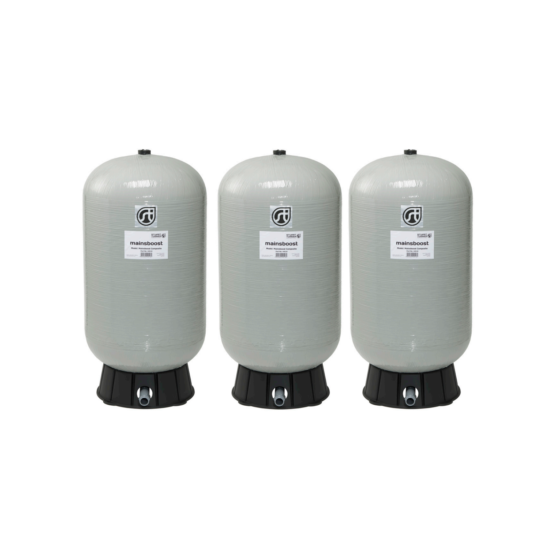

Stuart Turner MainsBoost Composite MB 130CV-3-22 Multi System

Stuart Turner MainsBoost Composite MB 130CV-3-22 Water Performance System

The Stuart Turner MAINSBOOST Composite MB 130CV-3 delivers the full performance of the standard MAINSBOOST range in a vessel that is 30% lighter than the steel version. This lightweight composite body is easy to handle, simplifying installation, particularly in tight or hard-to-reach areas. Its unique construction ensures superior water hygiene, making it the preferred solution for healthcare facilities.

The MB 130CV-3 is specifically designed for 'direct on mains' systems (like unvented hot water cylinders and combination boilers) when your incoming pressure is above 2.5 bar but the flow is too weak to meet demand. This vessel system operate silently and does not require an electrical supply.

The MB 130CV-3 has a nominal vessel size of 130 litres per vessel, providing approximately 71.5 litres of cold water storage capacity per vessel. Installation is significantly simplified thanks to the included compact MAINSBOOST Monobloc 22mm Upstream Kit (USK).

You can easily expand the system's cold water storage capacity by adding one or more MAINSBOOST Add-on units. If your incoming mains pressure is below 2.5 bar, a MAINSBOOST Charger pump can be used to boost the pressure in conjunction with the system.

This system is comprised of:

• 1 x MAINSBOOST Composite MB 130 CV (SKU: 44515)
• 2 x MAINSBOOST Composite MB 130 CV Add On Unit (SKU: 44773)

Key Features

• 5 year warranty
• Up to 80 litres/minute per vessel
• 3 x 130 litre pressure vessel
• Minimal maintenance
• Silent operation
• Consumes no electricity
• Lightweight composite construction
• Long life butyl diaphragm
• Integral strainer
• Comprehensive ULK installation kit included
• Patent protected
