Stuart Turner MainsBoost MB 250SV-1-22 System
Stuart Turner MainsBoost MB 250SV-1-22 Water Performance System Vessel

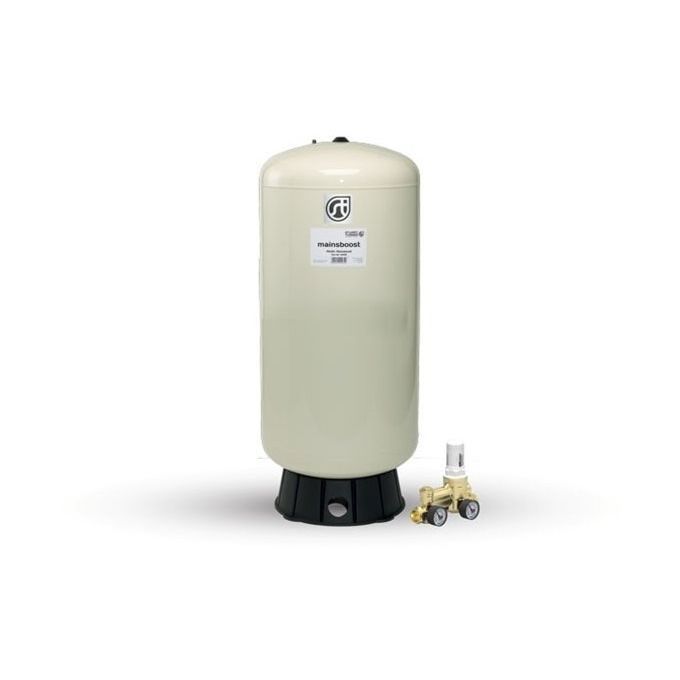

The Stuart Turner Mainsboost MB 250SV features a nominal vessel size of 240 litres and an actual water holding capacity of typically 132 litres. Available in single, twin and triple vessel options, each unit is supplied with a comprehensive Upstream Line-In Kit (ULK) featuring 22 mm pipe diameter fittings. Constructed from an epoxy coated steel body and a highly durable virgin butyl diaphragm,
All Stuart Turner Mainsboost vessels are WRAS Approved and come with a 5 year guarantee.
Model Vessel Capacity (Litres) Vessel Quantity ULK Kit (mm) MB 250SV-1-22 132 1 22
MAINSBOOST PLUS SYSTEMS WILL NO LONGER BE LISTED AS INDIVIDUAL PRODUCT CONFIGURATIONS. INSTEAD, THE REQUIRED MAINSBOOST PRESSURE VESSEL(S) AND VESSEL MOUNTED MAINSBOOST CHARGER MJ3 PUMP MUST BE ORDERED AS SEPARATE ITEMS.
EXAMPLE - FOR MAINSBOOST PLUS SYSTEM MBP 250SV-2-22 (44504), ORDER MAINSBOOST MB 250SV-2-22 (44462) AND MJ3 VM (41712)
Mainsboost Charger MJ3 Pumps

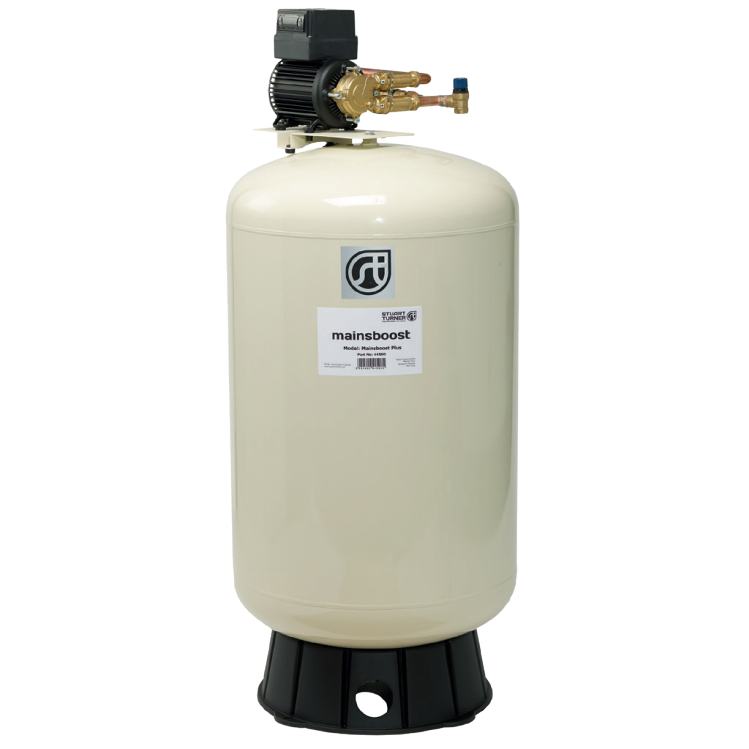

This pump is used in conjunction with Mainsboost Steel Pressure Vessels, providing a direct on mains pump solution to offer increased water pressure and flow when the incoming mains cold water pressure does not meet minimum requirements. Mainsboost Charger MJ3 pump units are mounted directly onto the Mainsboost vessel and options are available suitable for use with vertical or horizontally oriented vessels. The Mainsboost Charger MJ3 will boost water pressure up to 3.5 bar and an optional sound attenuation cover is available if the system is to be installed in a location where noise levels are to be kept to a minimum. All Mainsboost Charger MJ3 pumps feature an unique 'energy saving bypass' which means that the pump only runs when it needs to, they are also WRAS Approved and come with an industry leading 5 year guarantee as standard.
Mainsboost Charger MBC 12 Pumps
This pump is used in conjunction with Mainsboost Steel and Composite Pressure Vessels, providing a direct on mains pump solution to offer increased water pressure and flow when the incoming mains cold water pressure does not meet minimum requirements. Mainsboost Charger MBC 12 pump units are wall mounted, allowing the pump to be located remotely from the Mainsboost vessel without restricting performance. Housed within a robust steel enclosure lined with effective noise reduction foam, the Mainsboost Charger MBC 12 will boost water pressure up to 3.5 bar. All Mainsboost Charger pumps are WRAS Approved and come with an industry leading 5 year guarantee as standard. MBC 12 pumps are available with 22 mm or 28 mm bypass connection kits as standard, with larger kits of up to 65 mm for bespoke commercial systems available on request.
- Product Downloads
SKU 44461 Warranty 5 Year Warranty Weight (kg) 38.5000 Dimensions 535 x 535 x 1210mm high (vessel only) Material Epoxy Coated Steel body Orientation Vertical Vessel Quantity 1 Vessel
