Stuart Turner SPU 230 Mini Twin Pump Pressurisation Unit Wall Mounted

Special Price £570.00 £475.00 Regular Price £997.20 £831.00

Check Delivery is available in your area:

Free Standard Delivery On Most Products Over £100 ex VAT
2 Year Warranty
In stock
Next Day Delivery Available On This Product

Need help with your order?

Phone icon

Call us today 0333 323 2329

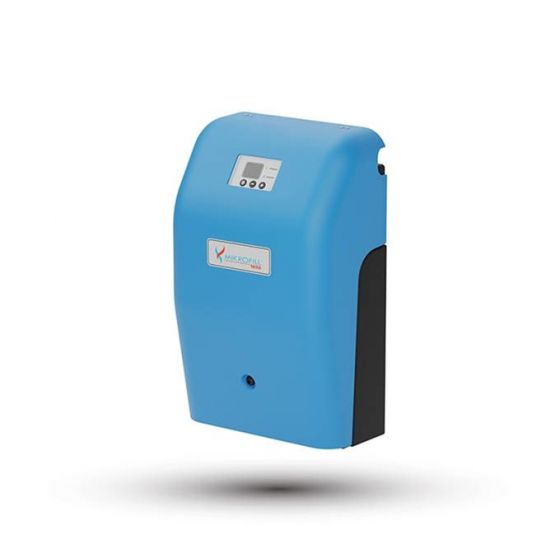

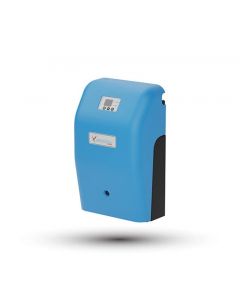

Stuart Turner SPU 230 Mini Pressurisation Unit


A twin pump wall mounted digital pressurisation units, these pressurisation units represent the next generation of automatic filling and pressure maintenance solutions for sealed heating and chiller systems.


For ease of installation the mini range comes with a configurable option for the flexible hose outlet connection of either left or right handed. Stuart Turner pressurisation units are also WRAS compliant and provide category 5 backflow protection, with type AB air gap, weir overflow and warning pipe. The new and advanced digital controls featuring an easy to use menu system and backlit LCD display. With a 2 year Gurantee.


Features of the SPU 130 & 230 Pressurisation Units

  • Suitable for sealed systems of up to 6,000 litres
  • Single (Duty) or twin (duty-standby) pump options
  • 3.0 bar cold fill pressure
  • 2 litre tank capacity
  • Compact design, wall mounting
  • Digital control system and LED display
  • Automated system top-up
  • Easy to install and set up
  • High flow, WRAS approved fill valve
  • Outlet configurable for left or right connection with flexible hose (supplied)
  • Category 5 backflow protection, Type AB air gap, weir overflow and warning pipe
  • Patent protected
  • 2 year guarantee
More Information
Delivery Estimate In stock
KIWA Approval No
Product Type Pressurisation Units
Custom Shipping 0.000000
Manufacturer Stuart Turner
Model Range SPU Mini
Warranty 2 Year Warranty
Dimensions 293 x 145 x 403mm (WxDxH)
Power Supply 220V-240V Single Phase
Kw Rating 100 W
Noise Rating 60 dB(A)
Volume / Capacity 2 Litre
Product Code 46720
Material Break tank: Polyethylene. Front cover: Acrylic capped ABS.
Tank Insulation Not insulated
Positioning Wall mounted
System Type Heating
Max Pressure 3 bar
Pump Quantity 2 Pump
