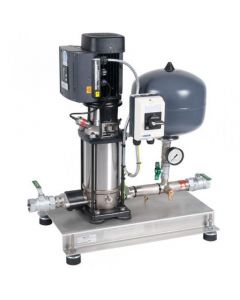

Grundfos Max-E 5Bar Single Pump Booster Set
The Grundfos Max-E Boost is a single pump packaged cold water booster set, which uses the latest variable speed E-pump motor technology, to maintain a constant discharge pressure up to a maximum setting of 4.5bar. The speed controlled operation of the Grundfos CRIE 5-8 helps eliminate pipe work noise caused by water hammer, normally associated with standard on/off controlled fixed speed pumps. The Max-E Boost is quiet in operation and its compact size make it suitable for installation in a utility room or garage, or a frost protected outdoor enclosure.
The WRAS approved CRIE 5-8 stainless steel vertical multistage pump is factory commissioned to deliver a constant 3 bar pressure at flow rates up to 1.9 l/s.
The Grundfos Max-E Boost has been designed as a compact and cost effective solution for pressure boosting in large domestic properties with two or more standard bathrooms.
The Max-E Boost can be connected to any standard Water Byelaw approved cold water storage tank having an AB Air Gap of adequate capacity to suit the water consumption of the installation.
