Calpeda BTM 61E AGAP 18 Cat 5 Single Pump Booster Set

Special Price £1,080.00 £900.00 Regular Price £1,543.20 £1,286.00

Check Delivery is available in your area:

Free Standard Delivery On Most Products Over £100 ex VAT
1 Year Warranty
In stock
Next Day Delivery Available On This Product

Need help with your order?

Phone icon

Call us today 0333 323 2329

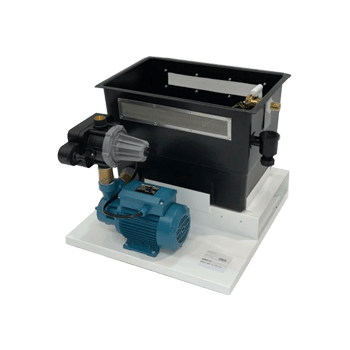

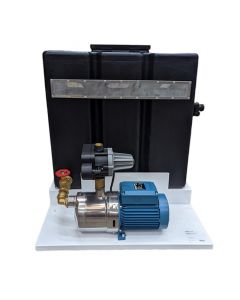

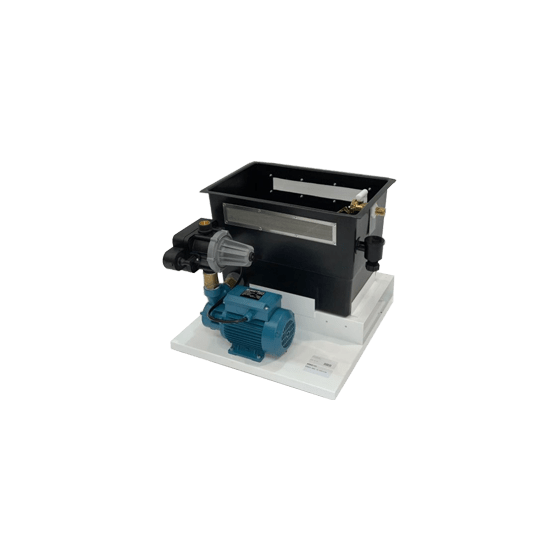

Calpeda Cat 5 BTM 61E AGAP 18 Single Pump Booster Set - part of a range of economically priced, fixed speed single pump cat 5 booster sets, consisting of a bronze pump with an automatic control system on a mild steel base with an 18 litre cold water storage tank.


The units are designed to prevent backflow of possible contaminated water into the mains water system, whilst maintaining a pressurised cold water supply to the equipment. The Idromat controller is equipped with a flow and pressure sensor, built in check valve and 0 - 12 bar pressure gauge. Designed for automatic control of the pump and has dry running protection.


The Calpeda AGAP pump system with cistern is designed to meet the requirements of the water supply (water fittings) regulations 1999 in respect of a type AB air gap at the point of use or discharge of "quality non-domestic water”. A servicing valve with a relevant BSI kite mark, CE mark or WRAS approval must be fitted in the cistern water supply pipe prior to the float operated valve.


Calpeda Cat 5 BTM 61E AGAP 18 for use in the below applications:

  • Wash down and bin store
  • Dental rinsing equipment
  • Single hosepipe application
  • Laboratory water supplies
  • Vehicle and plant cleaning
  • Any other CAT5 application where backflow protection is required.


Model Ball/Float Tank size Supply
BTM61E AGAP 18 3/4" 18 230/1/50
More Information
Delivery Estimate In stock
Product Type Booster Set
Booster Type Cat 5
Custom Shipping 0.000000
Manufacturer Calpeda
Model Range B-TM Range
Warranty 1 Year Warranty

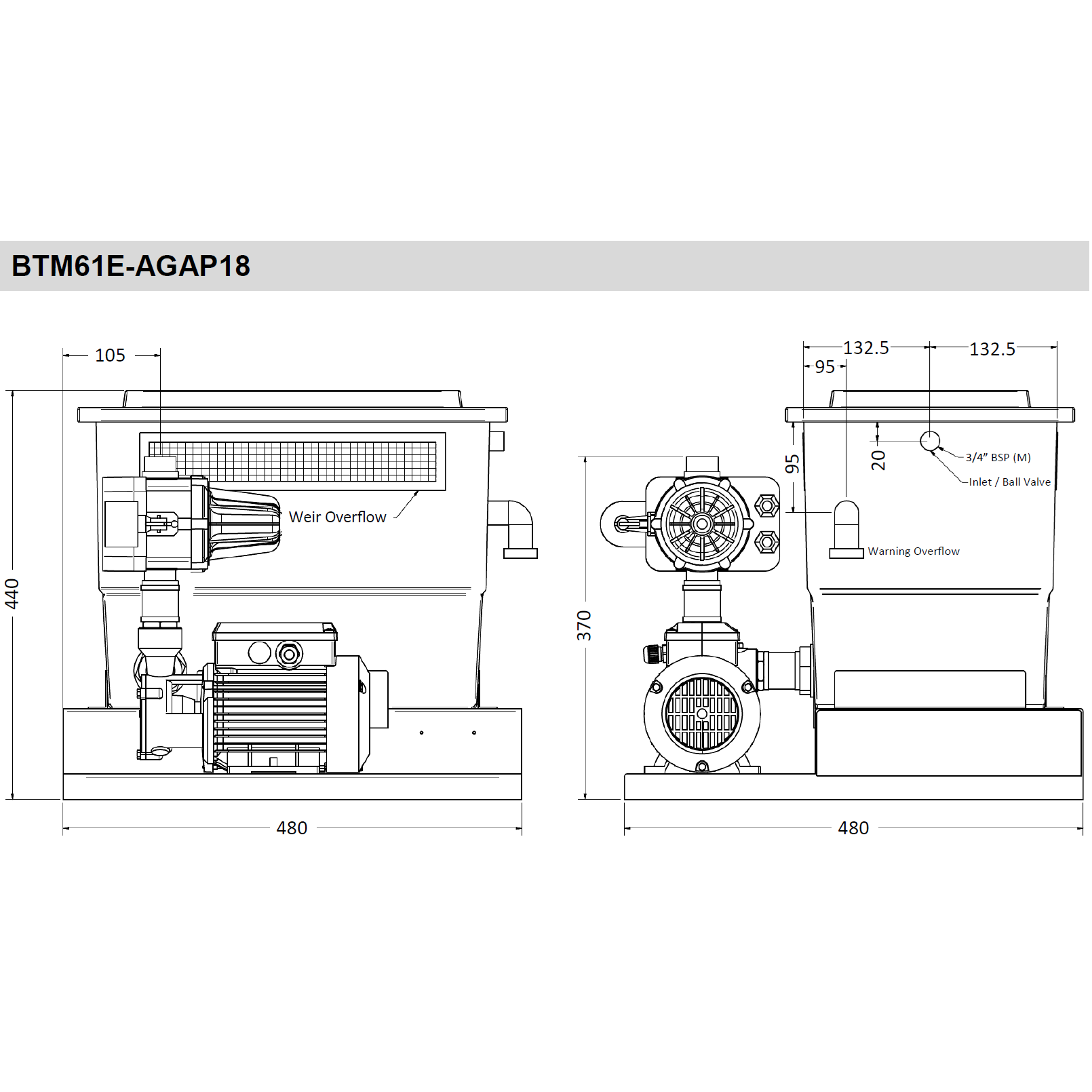

Dimensions 480 x 480 x 440mm (WxDxH)
Power Supply 220V-240V Single Phase
Kw Rating 0.55 kW
Volume / Capacity 18 Litre

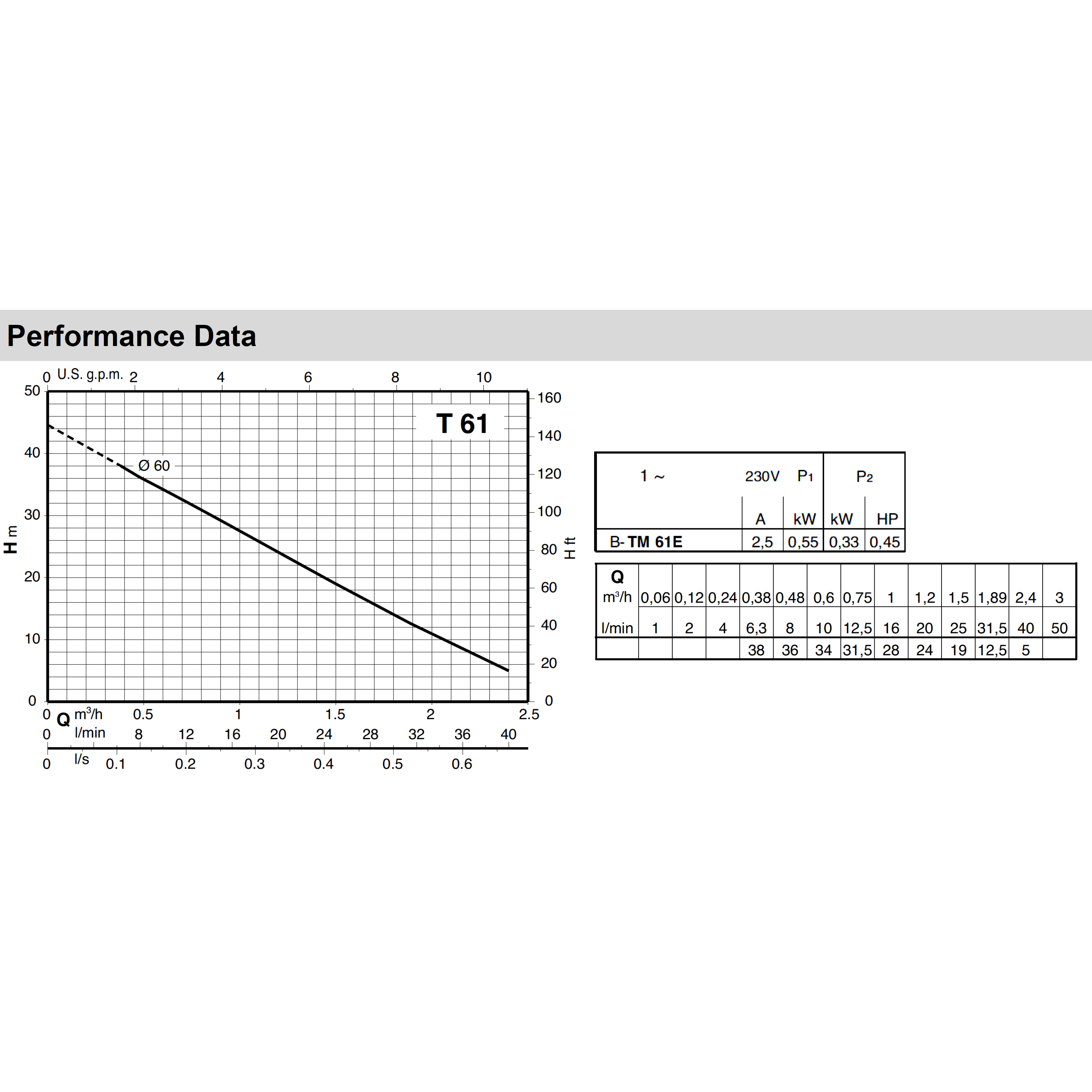

Max Flow 0.66 l/s
Max Head 38m
Product Code U30000400000
Tank Insulation Not insulated
Inlet Connection 3/4" Threaded
Positioning Floor standing
System Type Category 5
Variable Speed No
Pump Quantity 1 Pump
