Calpeda BTM 61E AGAP 80 Cat 5 Single Pump Booster Set

Special Price £1,409.52 £1,174.60 Regular Price £2,013.60 £1,678.00

Check Delivery is available in your area:

Free Standard Delivery On Most Products Over £100 ex VAT
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

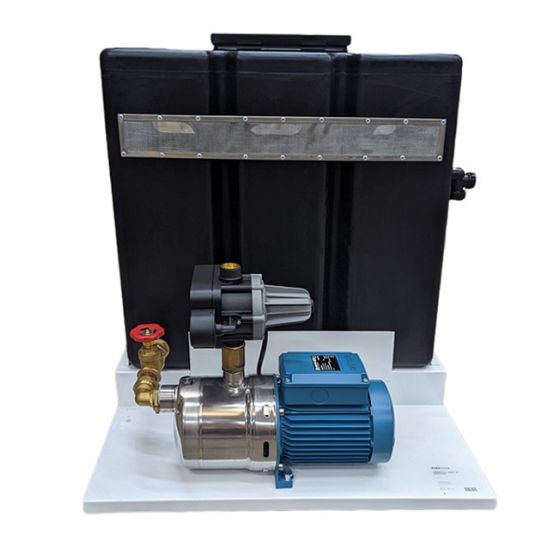

Calpeda Cat 5 BTM 61E AGAP 80 Single Pump Booster Set


Calpeda AGAP pump sets are a range of economically priced, fixed speed single pump cat 5 booster sets, consist of a bronze pump with automatic control system on a mild steel base with a 80 litre cold water storage cistern. The units are designed to prevent backflow of possible contaminated water into the mains water system, whilst maintaining a pressurised cold water supply to the equipment. The Idromat controller is equipped with a flow and pressure sensor, built in check valve and 0 - 12 bar pressure gauge. Designed for automatic control of the pump and has dry running protection. The Calpeda AGAP pump system with cistern is designed to meet the requirements of the water supply (water fittings) regulations 1999 in respect of a type AB air gap at the point of use or discharge of "quality non-domestic water”. A servicing valve with a relevant BSI kite mark, CE mark or WRAS approval must be fitted in the cistern water supply pipe prior to the float operated valve.


Model  Ball/Float Cistern Supply
BTM61E AGAP 80   3/4" 80  230/1/50


More Information
Product Type Booster Set
Booster Type Cat 5
Custom Shipping 0.000000
Manufacturer Calpeda
Model Range B-TM Range
Warranty 1 Year Warranty

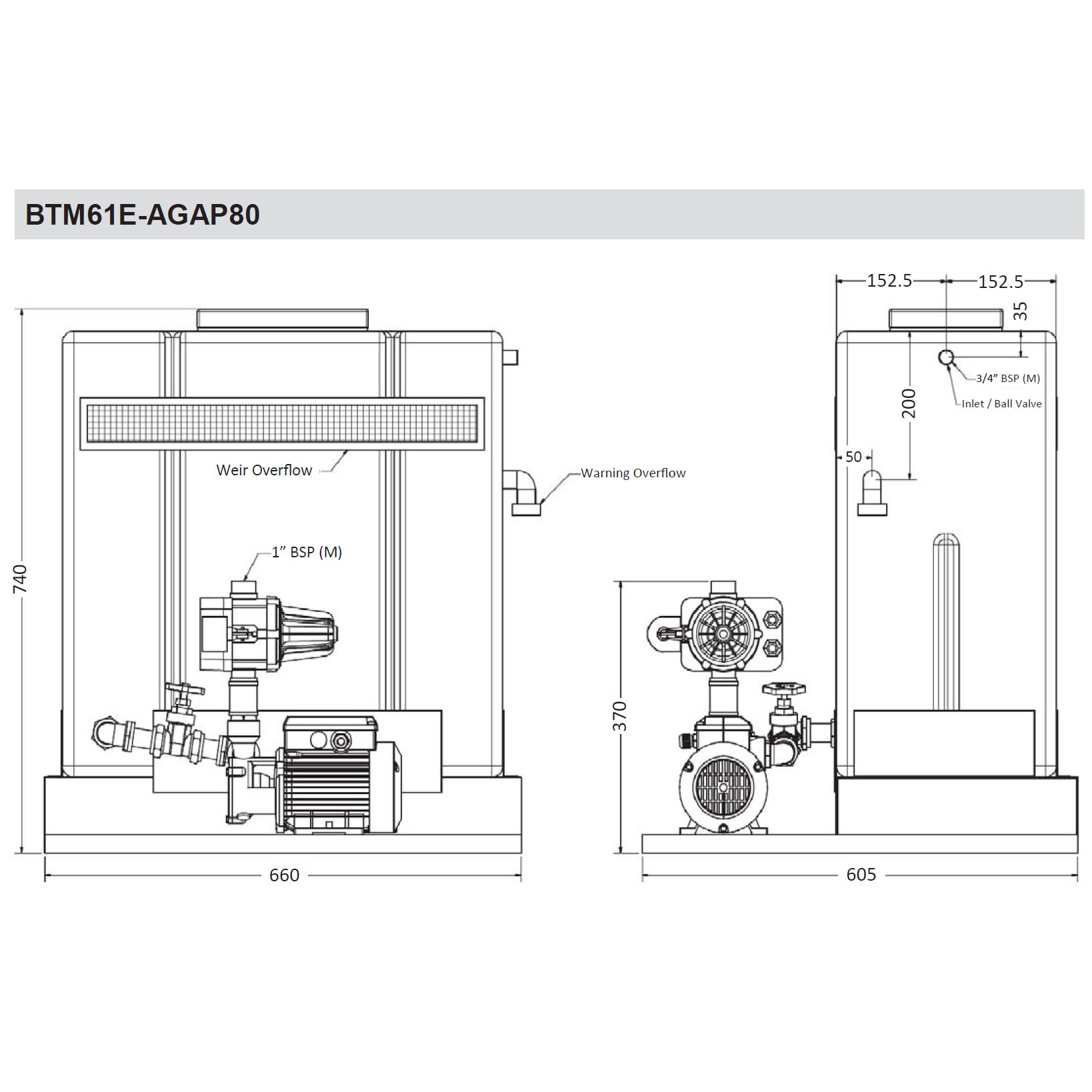

Dimensions 660 x 605 x 740mm
Power Supply 220V-240V Single Phase
Kw Rating 0.55 kW
Volume / Capacity 80 Litre
Max Flow 0.66 l/s
Max Head 38m
Product Code U30000500000
Tank Insulation Not insulated
Outlet Connection 1'' Threaded
Inlet Connection 3/4" Threaded
Positioning Floor standing
System Type Category 5
Variable Speed No
Pump Quantity 1 Pump
