Calpeda Unimat Alpha Single Pump 240V Pressurisation Unit

Product Code: U29000300000
Calpeda Unimat Alpha Single Pump 240V Pressurisation Unit
Delivery Estimate
In Stock
1 Year Warranty

Regular Price: £843.60

Special Price £421.00 ex. VAT £505.20 inc. VAT

OR

Want to speak to us?

Open 8.30am - 5pm Mon to Fri

Order by phone and get advice.

Freephone 0333 323 2329

Description

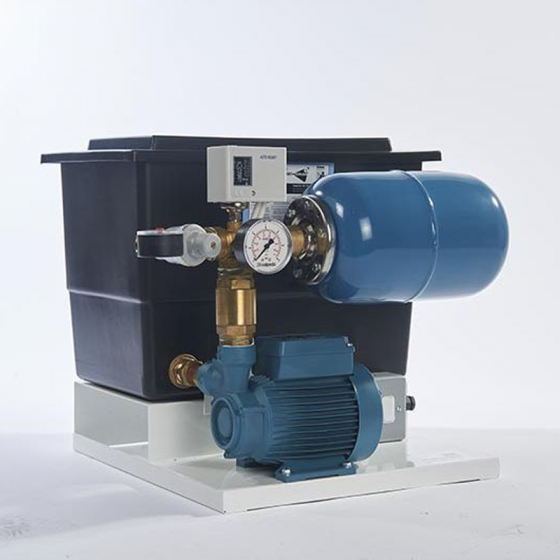

Calpeda Unimat Alpha Single Pump 240V Pressurisation Unit

Calpeda Unimat Alpha Single Pump 240V Pressurisation Unit

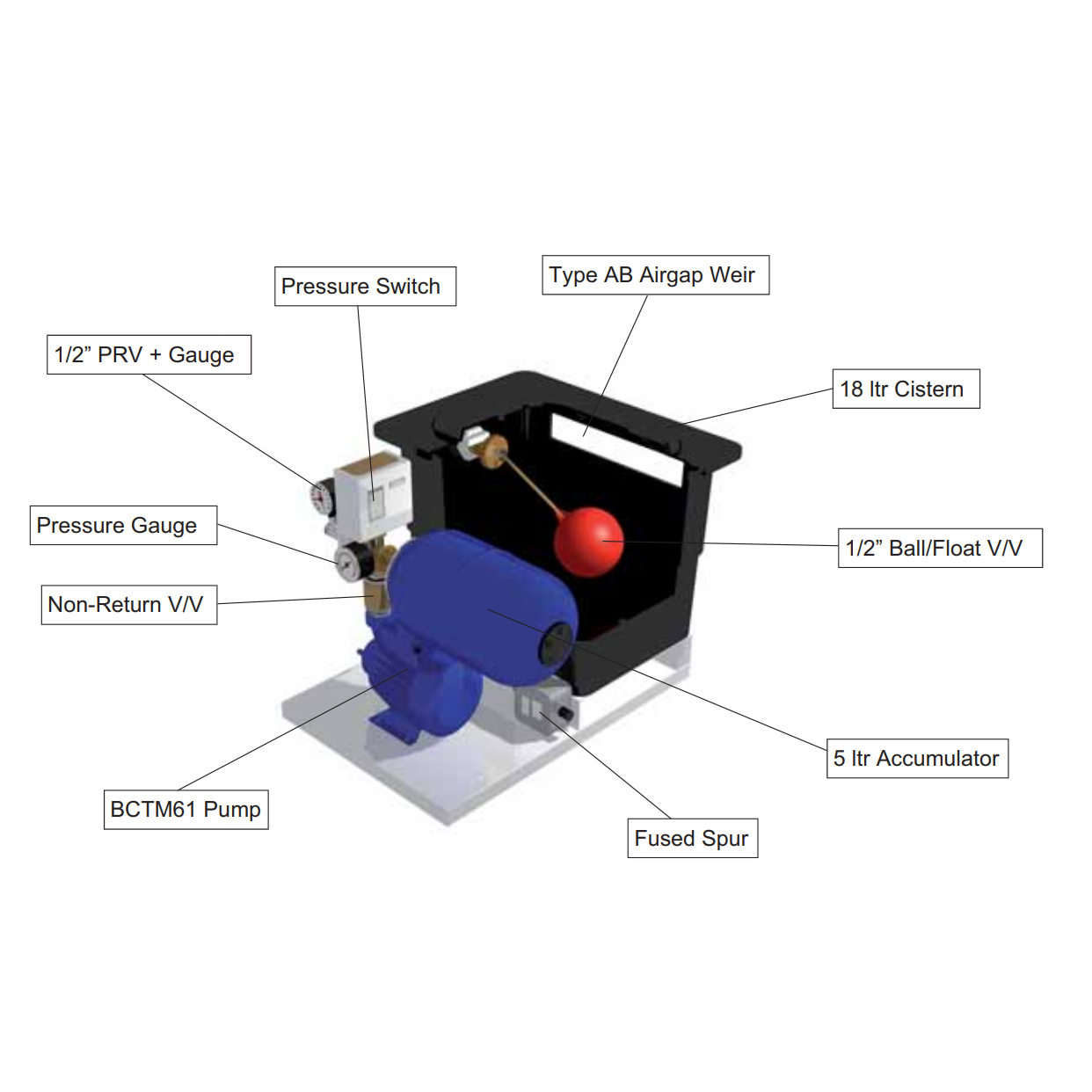

Unimat Alpha is a simple one pump pressurisation unit designed for use on closed circuit heating and cooling systems. The unit features an 18 ltr storage tank with type AB Airgap and 1/2” ball/float valve, and a powerful bronze peripheral impeller pump capable of flows to 38 ltr.min and heads to 41m (4bar). The pressurisation unit is complete with a powder-coated mild steel base-plate, pressure switch, pressure gauges (pump and system), pressure reducing valve, 5 ltr accumulator, non-return valve and fused spur.

The units are fully wired and tested.

Technical Data

  • Pump: BCTM61 Bronze Peripheral Impeller Pump.
  • Motor: TEFV, IP54, Class F, 230/1/50 IEC60335-2-41, 0.33kW. Built-in thermal protection and capacitor. Continuously rated.
  • Base: Mild steel ~ Powder coated.
  • Pressure Switch: 0-6bar differential switch.
  • Pressure Gauge: 0-6bar (pump outlet).
  • PRV: Brass 1/2” with 0-6 bar gauge (system pressure).
  • Vessel: Mild steel, stainless flange, butyl bladder.
  • Fittings: All brass.
  • Tank: Plastic 18 ltr Nominal.
  • Ball/Float V/V: 1/2” brass valve BS Part II with 4” plastic float.
  • Max. Flow: 38 ltr/min.
  • Max Pressure: 4.0 bar.

General Data

  • ​Weight: 15Kg Net

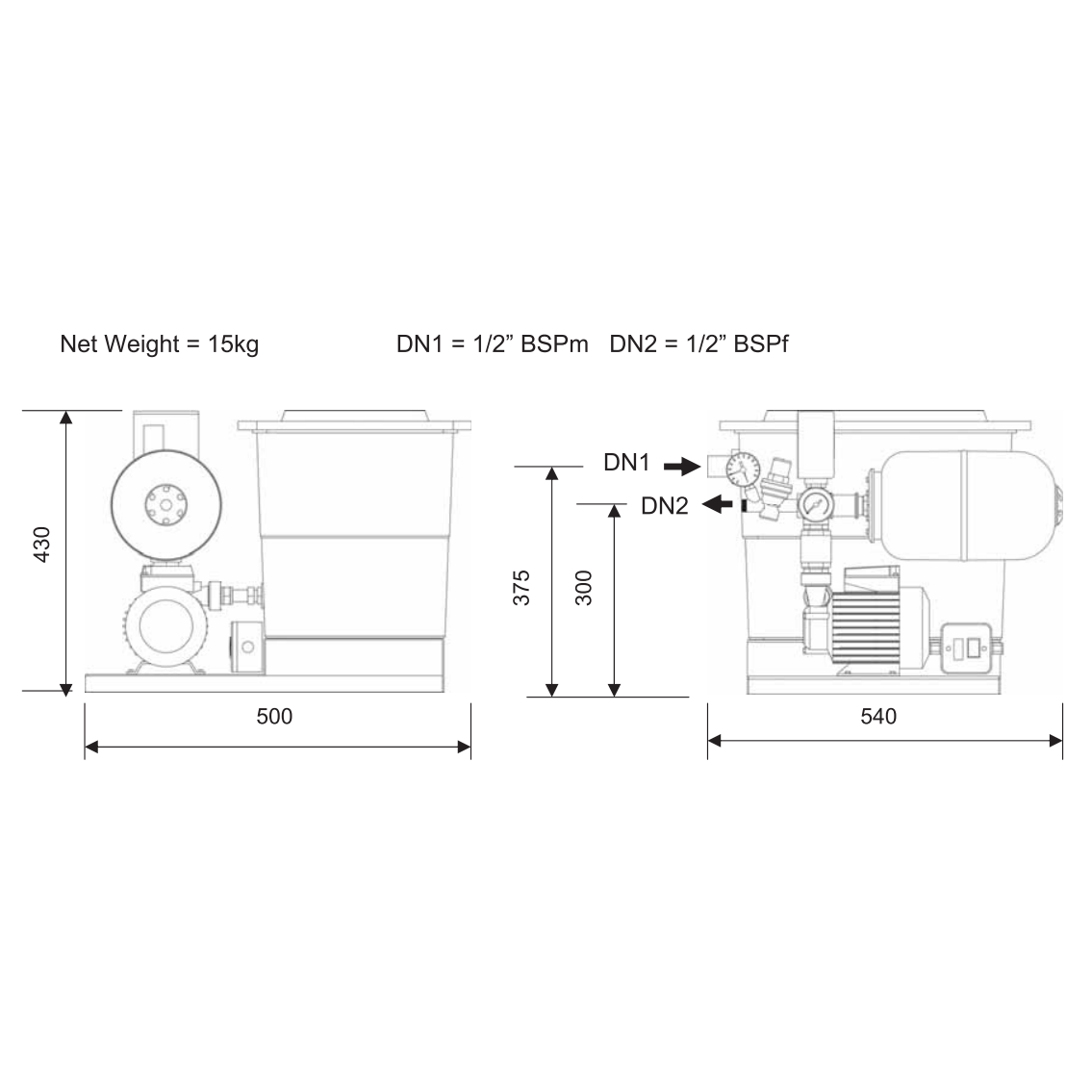

  • Dimensions: 540w x 500d x 430h
  • Air Gap: Non-Domestic, Type AB Airgap
  • Electrical: Fused Spur (5A), 230V 1ph 50hz. Pump Motor P2 = 0.33kW, 2.5A
  • Water In/Out: 1/2” BSPm/1/2” BSPf
Product Downloads
Specification
SKU U29000300000
Warranty 1 Year Warranty
Weight (kg) 25.0000
Power Supply 240V Single Phase
