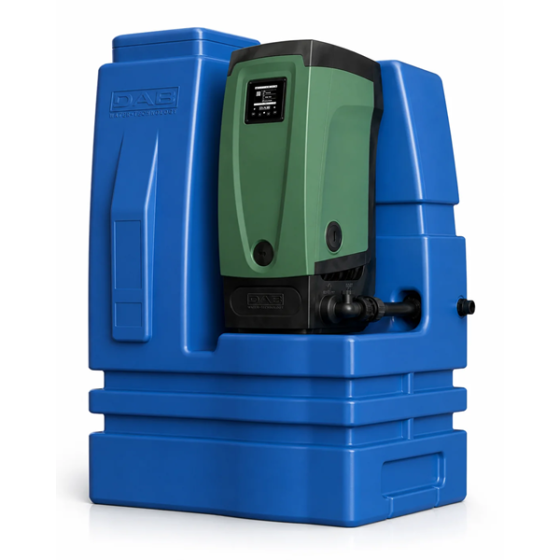

DAB ESYBOX and ESYTANK 300 Cold Water Booster & Storage Tank

DAB ESYBOX and ESYTANK 300 Packaged Booster Pump & Cold Water Storage Tank

The DAB E.sybox and E.sytank 300 is an all in one booster set and water storage tank for domestic and residential applications. The DAB ESYTANK 300 is a premium residential water storage tank designed to work hand-in-hand with the DAB Esybox booster pump. The ESYBOX and ESYTANK 300 provides a complete break tank & booster pump package ideally suited for boosting mains potable water within residential and light commercial applications.

• Operating range: maximum flow rate 120 l/min, head up to 65 metres
• Pumped fluid: clean, free from solids or abrasive substances, not viscous, not aggressive, not crystallised and chemically neutral.
• Maximum liquid temperature: 40°C
• Maximum environment temperature: 50°C
• Maximum capacity: 275 litres
• Supply pressure allowed at mains water inlet: max. 6 bar
• Dimensions of mains water inlet pipe: ¾”
• Dimensions of delivery pipe: 1”
• Dimensions of overflow pipe connection: DN 50
• Dimensions of front discharge (not drilled): DN 40

DAB Esybox Water Booster Pump

The ESYBOX does not require any additional component for its installation because it consists of a self-priming multistage pump, electronics for control and management, pressure and flow sensors, a high-resolution LCD orientable display and an integrated expansion vessel of 2 litres. Thanks to the Inverter technology, e.sybox draws the energy necessary according to the water requirements, thereby avoiding futile wastes and allowing considerable economic savings.

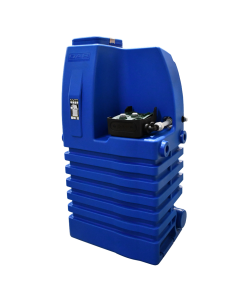

DAB Esytank 300 Water Storage Tank

The ESYTANK 300 is a potable (drinking) water storage tank engineered to integrate effortlessly with the ESYBOX electronic water booster. Combined, the ESYBOX and ESYTANK 300 form a complete, all-in-one break tank and booster pump system making it the perfect solution for boosting mains drinking water in homes and light commercial buildings.

• ESYTANK 300 has a 275 Litre maximum working volume per tank
• Integrated ESYDOCK for simple & quick pump connection
• Compact dimensions
