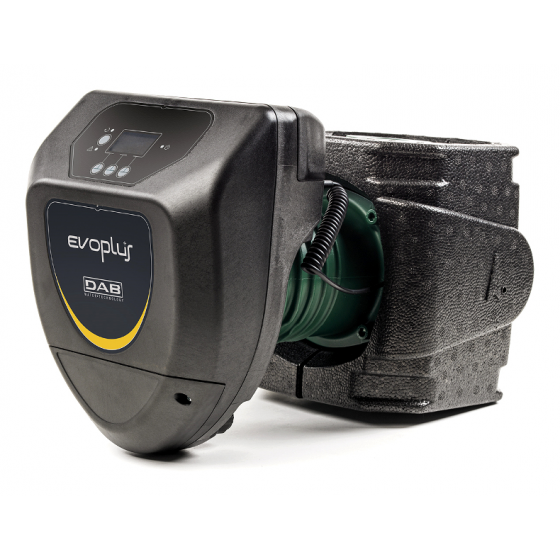

DAB EVOPLUS B 120/250.40 SAN M Single Head Circulator
DAB Evoplus B 120/250.40 SAN M Circulating Pump
EVOPLUS circulation electronic pumps can be used in heating, ventilation, and air conditioning systems for residential and commercial buildings, like:
- Large residential buildings
- Condominiums and small apartment buildings
- Real estate buildings
- Private and public hospitals
- Office buildings
The SAN version, with bronze pump body, was specifically developed for the recirculation of sanitary water. With the constant temperature mode of operation, the temperature inside the recirculation piping is controlled without the need for thermostat valves, therefore optimising comfort.
Bronze pump body. Motor casing in diecast aluminium. Technopolymer impeller. Steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Stainless steel rotor sleeve and closing flange, stator sleeve in carbon fibre composite. Ceramic thrust ring, ethylene propylene sealing rings. Synchronous motor with permanent magnet rotor.
Manufacturer DAB Model Evoplus B 120/250.40 SAN M Part Number 60151164 Warranty 2 Years Max Flow 6.7 l/s Max Head 12m Voltage 240V 1Ph 50Hz Centre distance 250mm Full Load Current (FLC) 2.2A Motor Size (kW/W) 465W Dimensions 230mm High x 250mm Wide x 419mm Deep Material Bronze Pump couplings DN40 PN10 Liquid temperature range from -10°C to +110°C. Maximum Working pressure 16 bar (1600 kPa) Protection rating IP 44 Insulation class F
- Product Downloads
SKU 60151164 Warranty 1 Year Warranty Weight (kg) 22.0000
