Domoboost Protex Pro 82 Single Pump CAT 5 Booster & Tank

SKU
2049661-FB
Special Price £1,502.70 £1,252.25 Regular Price £2,910.00 £2,425.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
2 Year Warranty
1 - 2 working weeks

Need help with your order?

Phone icon

Call us today 0333 323 2329

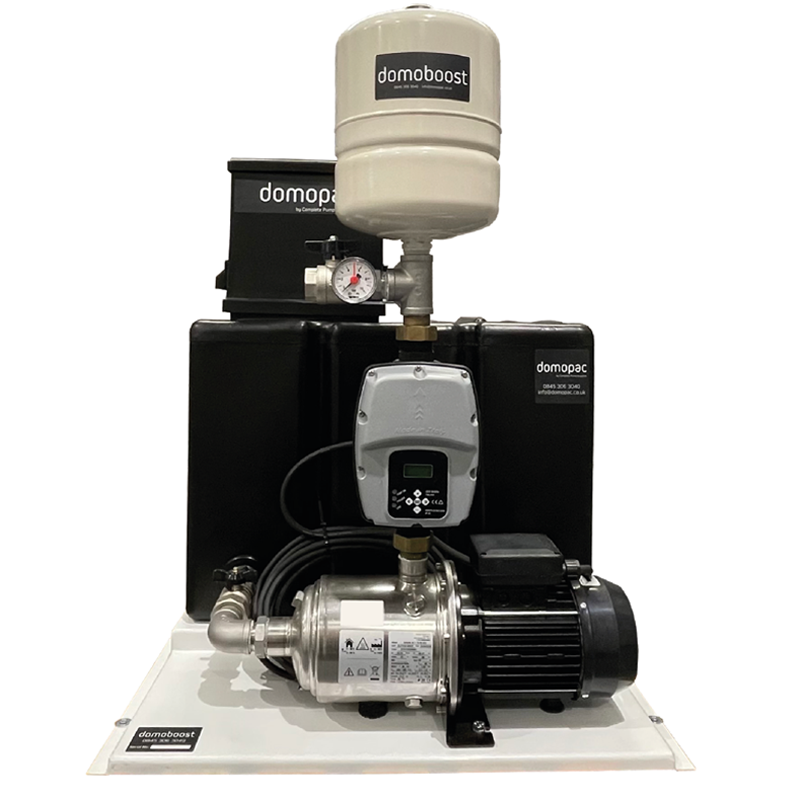

Domoboost Protex Pro 82 - Single Pump CAT 5 Booster & Tank



The Domoboost Protex Pro 82 from Domopac is a variable speed single pump booster set with cold water storage tank with AB air gap. This unit offers a space saving solution for boosting water in applications that require fluid category five (CAT 5) protection. Such as, Bin Stores (Washdown), Laboratories, Mortuaries, Bib Taps, Vet Surgeries.


  • WRAS Approved stainless steel horizontal multistage pump
  • Suitable for a 1 phase 230 volt supply only
  • 82 litre/18 gallon uninsulated water tank (other tank sizes available on request)
  • CAT 5 (AB) Fluid Category Protection raised chamber
  • WRAS Approved water storage tank
  • Domopac ACV.H Expansion Vessel with 5 Year Guarantee
  • Variable speed discharge mounted controller with LCD display


Example Duties Available:

  • 0.75 l/s @ 5 bar
  • 1 l/s @ 4 bar
  • 1.1 l/s @ 3.5 bar
  • 1.22 l/s @ 3 bar



Product Overview

WRAS Approved stainless steel horizontal multistage pump with max head of 66m.
Raised chamber to ensure that in the event of ball valve failure, water overflows out of tank avoiding back siphoning into the mains supply.
Domopac discharge mounted variable speed drive, complete with LCD display giving a simple and clear system overview including pressure and speed.
Booster and tank situated on purpose built base plate ensuring a compact footprint - 670mm x 860mm (W x D)



Not sure which product you need?

Contact our Sales Team for expert help and advice on all things water boosting! You can reach them by telephone on 0333 323 2329.

More Information
Delivery Estimate 1 - 2 working weeks
Product Type Booster Set
Booster Type Cat 5
Custom Shipping 0.000000
Manufacturer Domopac
Model Range Domoboost Protex
Warranty 2 Year Warranty
Dimensions (W) 670mm x (L) 680mm (H) 880mm
Power Supply 220V-240V Single Phase
Kw Rating 0.9 kW
Volume / Capacity 82 Litre
Max Flow 1.2 l/s
Max Head 66m
Product Code 2049661-FB
Tank Insulation Not insulated
Outlet Connection 1'' Threaded
Inlet Connection 1/2" Threaded
Positioning Floor standing
Orientation Horizontal
System Type Category 5
Variable Speed Yes
Pump Quantity 1 Pump
