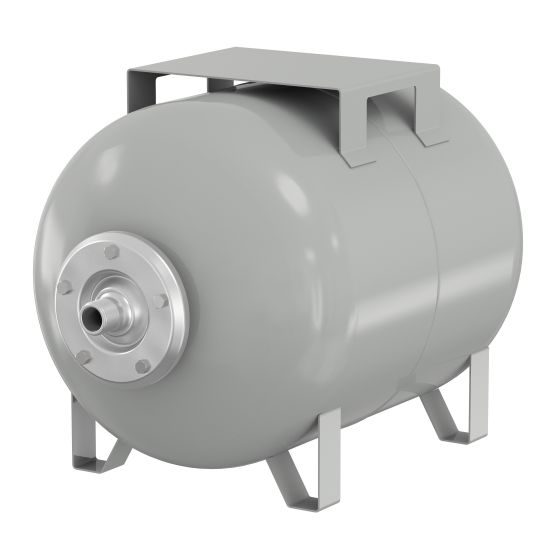

Flamco Airfix P 24 Litre Horizontal Potable Expansion Vessel

Flamco Airfix P 24 Litre Horizontal Potable Expansion Vessel

Name: Flamco Airfix P 24 Litre Horizontal Potable Expansion Vessel
Brand: Flamco UK
SKU: 24909
Price: 105.86 GBP
Availability: InStock

SKU

24909

£105.86 £88.22

Check Delivery is available in your area:

Postcode

Represented in more the 70 countries worldwide, Flamco UK are a leading manufacturer and supplier of high quality components to be used in HVAC systems. The company produces innovative and elegant solutions for both commercial and domestic building problems, whilst offering alternatives conducive to energy sustainability. The company formed in the 1950s but really started to expand the following decade with the growth of the central heating in both commercial and domestic properties. Flamco was at the forefront of this blossoming industry, inventing the expansion vessel, which grew throughout Europe. The company continued to innovate and invent new accessories for central heating systems, allowing property owners get the most out of their units. With 10s of millions of expansion vessels produced and installed around the world, the influence of Flamco should not be underestimated. Alongside the Flamco expansion vessels and Flamco pressurisation units, they also produce a wide range of other products including expansion and refill automats for heating and cooling, safety valves, pressure gauges, connection groups, storage vessels as well as mounting material. Central to the company’s values is a dedication to producing sustainable and energy efficient solutions in an extremely energy-intensive industry. The team of skilled and dedicated engineers are consistently updating and innovating ideas to improve the sustainability of their output. Flamco provides an exceptional level of after-sales service, ensuring that all customers are provided with sufficient support.

Free Standard Delivery On Most Products Over £100 ex VAT

SERVICE & MAINTENANCE

2 Year Warranty

Need help with your order?

Call us today 0333 323 2329

Product Description

Flamco Horizontal Potable 24 Litre Expansion Vessel - Domestic installations lose tens of thousands of litres of potable water due to expansion water leaking from the vent and expansion pipe.

Flamco’s Airfix P pressure expansion vessels for Potable water work to prevent this waste. These expansion vessels can be applied in combination with all hot water calorifiers and as surge vessels in pressure boosting systems.

Specification

Flamco Airfix P 24 H
Volume: 24 litre
Dimensions: 260mm Diameter x 280mm Height x 485mm Length
Connection size: 3/4" M BSP
Pre charge pressure: 2.7 bar
Maximum working pressure: 8.0 bar
Min./ max. working temperature (bladder): -10 / 100 °C
Suitable for addition of glycol-based anti-freeze up to 50%
In accordance with Pressure Equipment Directive 2014/68/EU
Colour: Coated aluminium (RAL 9006).

Specification

More Information
Product Type	Expansion Vessels
Custom Shipping	0.000000
Manufacturer	Flamco UK
Model Range	Airfix
Warranty	2 Year Warranty
Dimensions	260 x 280 x 485 (Dia x H x L)
Volume / Capacity	24 Litre
Product Code	24909
Material	Bladder: EPDM
Connection Type	3/4"
Orientation	Horizontal
Positioning	Floor standing
System Type	Potable (Drinking)
Vessel Pre-Charge Pressure	2.7 bar
