Flamco Airfix P 60 Litre Horizontal Potable Expansion Vessel

SKU
24914
£351.14 £292.62

Check Delivery is available in your area:



WRAS Approved Product
Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
2 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

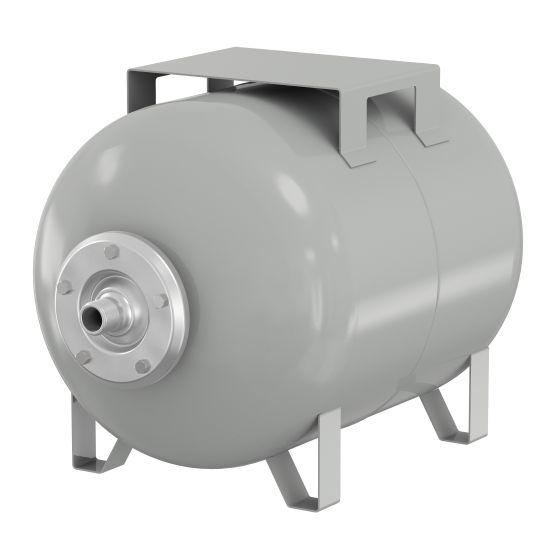

Flamco Horizontal Potable 60 Litre Expansion Vessel



Flamco Airfix P expansion vessels for pressurised systems are suitable for domestic, process or extinguishing systems which need oxygen rich water. Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems. The vessels are designed to incorporate a unique contoured, interchangeable diaphragm. They are available with a capacity of 2 - 5,000 litres.



  • Nitrogen gas filling for longer retention of pre-charge.
  • Designed to incorporate a unique contoured, replaceable bladder.
  • With single threaded steel connection and plastic insert (no flow through function).



Specifications

  • Flamco Airfix P 60 H
  • Volume: 60 litres
  • Dimensions: 380mm diameter x 720mm height x 408mm length
  • Connection Size: 1" M BSP
  • Pre charge pressure: 2.7 bar
  • Maximum working pressure: 10.0 bar.
  • Min./ max. working temperature (bladder): -10 / 100 °C.
  • Suitable for addition of glycol-based anti-freeze up to 50%.
  • In accordance with Pressure Equipment Directive 2014/68/EU.
  • Colour: Coated aluminium (RAL 9006).
More Information
Product Type Expansion Vessels
Custom Shipping 0.000000
Manufacturer Flamco UK
Warranty 2 Year Warranty
Dimensions 380 x 720 x 408mm (Dia x H x L)
Volume / Capacity 60 Litre
Product Code 24881
Material Bladder: EPDM
Connection Type 1"
Positioning Floor standing
Orientation Horizontal
System Type Potable (Drinking)
Vessel Pre-Charge Pressure 2.7 bar
