Flamco Flexcon 1000 Litre Expansion Vessel - 6 bar

Flamco Flexcon 1000 Litre Expansion Vessel - 6 bar

Name: Flamco Flexcon 1000 Litre Expansion Vessel - 6 bar
Brand: Flamco UK
SKU: 16903
Price: 2953.09 GBP
Availability: InStock

SKU

16903

£2,953.09 £2,460.91

Check Delivery is available in your area:

Postcode

Represented in more the 70 countries worldwide, Flamco UK are a leading manufacturer and supplier of high quality components to be used in HVAC systems. The company produces innovative and elegant solutions for both commercial and domestic building problems, whilst offering alternatives conducive to energy sustainability. The company formed in the 1950s but really started to expand the following decade with the growth of the central heating in both commercial and domestic properties. Flamco was at the forefront of this blossoming industry, inventing the expansion vessel, which grew throughout Europe. The company continued to innovate and invent new accessories for central heating systems, allowing property owners get the most out of their units. With 10s of millions of expansion vessels produced and installed around the world, the influence of Flamco should not be underestimated. Alongside the Flamco expansion vessels and Flamco pressurisation units, they also produce a wide range of other products including expansion and refill automats for heating and cooling, safety valves, pressure gauges, connection groups, storage vessels as well as mounting material. Central to the company’s values is a dedication to producing sustainable and energy efficient solutions in an extremely energy-intensive industry. The team of skilled and dedicated engineers are consistently updating and innovating ideas to improve the sustainability of their output. Flamco provides an exceptional level of after-sales service, ensuring that all customers are provided with sufficient support.

Free Standard Delivery On Most Products Over £100 ex VAT

SERVICE & MAINTENANCE

Need help with your order?

Call us today 0333 323 2329

Product Description

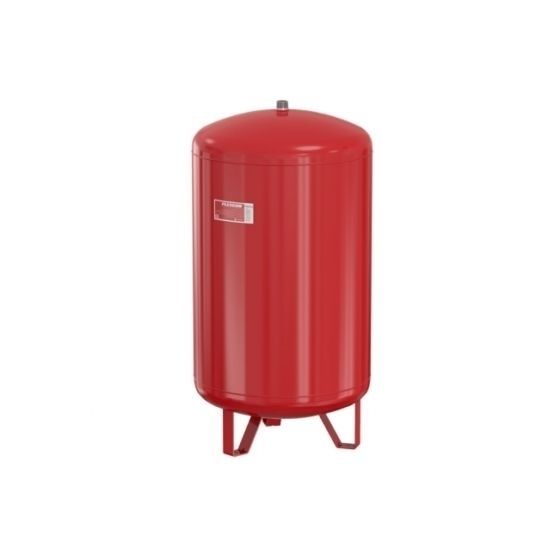

Flamco Flexcon 1000 Litre Heating Expansion Vessel 6 bar expansion vessels are suitable for use in central heating, cooling and solar installations.

For use under high pressure. Top-quality high strength steel, with a gleaming red (RAL 3002) epoxy powder coating – perfect protection and finish. Clamp ring of heavy-duty thermally-galvanised steel. Our flexible butyl diaphragms with rolling action are suitable for use with glycol based anti-freeze addition up to 50%. Exact details are available on request. The nitrogen airvalve is sunk and cannot be damaged due to the cap and extra protective plastic beige coverplate. Uncoated threaded system connection, ensuring problem free connecting.

Specifications

Flamco Flexcon 1000
Volume: 1000 litres
Dimensions: 790mm diameter x 2268mm height
Connection Size: 1" M BSP
Weight: 101.4 kg
Pre charge pressure: 1.5
Maximum working pressure: 6.0 bar.
Vessels in accordance with EN13831.
Maximum temperature at (heating) outlet 120 °C.
Maximum temperature diaphragm: 70°C
Maximum supply temperature (boiler): 90°C
Suitable for addition of glycol-based anti-freeze up to 50%.
In accordance with Pressure Equipment Directive 2014/68/EU.
Red (RAL 3002) epoxy powder coating.

Specification

More Information
Product Type	Expansion Vessels
Custom Shipping	0.000000
Manufacturer	Flamco UK
Model Range	Flexcon
Product Code	16903
Positioning	Floor standing
Max Pressure	6 bar
