Flamco Flexcon 200 Litre Expansion Vessel - 10 bar

Product Code: 16193
Flamco Flexcon 200 Litre Expansion Vessel - 10 bar
Delivery Estimate
3 - 5 working days
Our Price £479.58 ex. VAT £575.50 inc. VAT
Shipping Cost £20.00
OR

Want to speak to us?

Open 8.30am - 5pm Mon to Fri

Order by phone and get advice.

Freephone 0333 323 2329

Description

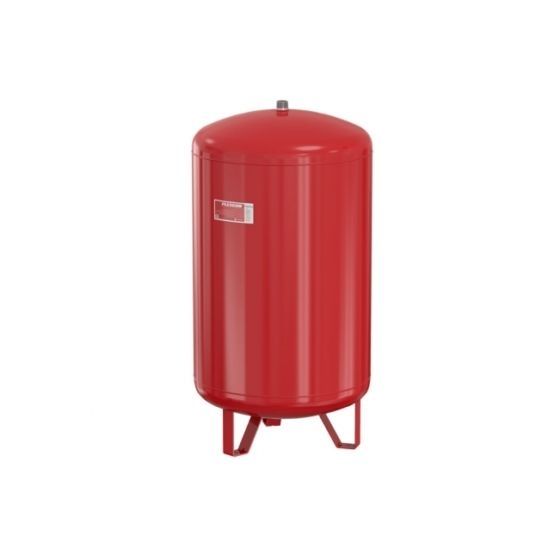

Flamco Flexcon 200 Litre Expansion Vessel - 10 bar

Flamco Flexcon 200 Litre Expansion Vessel - 10 bar

The Flexcon 10 bar expansion vessel ranges from 110 to 1000 litres and is intended for use on central heating and cooling installations. The Flexcon diaphragm expansion vessels are made of top-quality steel and come with a high gloss epoxy coating. The rolling action of the Flexcon diaphragm provides the vessel with a longer life.

The expansion vessel comes pre-charged. The bracket must be able to carry the weight of a full expansion vessel.

Specifications

  • Max. working pressure: 10,0 bar(g).
  • Max. temperature at (heating) outlet: 120 °C.
  • Max. temperature diaphragm: 70 °C (DIN4807/3).
  • Max. supply temperature (boiler): 90 °C.
  • Min. working temperature: -10 °C.
  • In accordance with Pressure Equipment Directive 97/23/EG.

Type

Pre Charge (Bar)

Maximum Working Pressure (Bar)

Volume (l)

Dimensions (mm)

Connections (BSP M) (G)

Weight (Kg)

Dia

H

Flexcon 200

1.5

10

200

600

960

1"

35.4

Product Downloads
Specification
SKU 16193
Weight (kg) 35.4000
Positioning Floor standing
Max. Pressure 10 bar
