Flamco Flexcon Premium 12 Litre Expansion Vessel

SKU
16945
£104.40 £87.00

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE
15 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

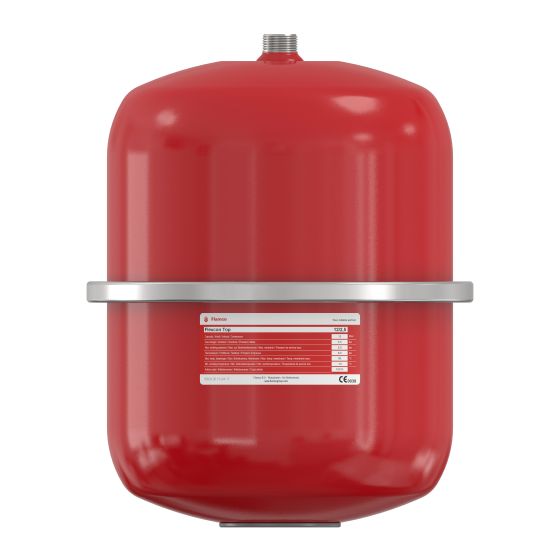

Flamco Flexcon Premium 12 Litre Heating Expansion Vessel 6 bar expansion vessels are suitable for use in central heating, cooling and solar installations.



For use under high pressure. Top-quality high strength steel, with a gleaming red (RAL 3002) epoxy powder coating – perfect protection and finish. Clamp ring of heavy-duty thermally-galvanised steel. Our flexible butyl diaphragms with rolling action are suitable for use with glycol based anti-freeze addition up to 50%. Exact details are available on request. The nitrogen airvalve is sunk and cannot be damaged due to the cap and extra protective plastic beige coverplate. Uncoated threaded system connection, ensuring problem free connecting.



Specifications

  • Flamco Flexcon Premium 12
  • Volume: 12 litre
  • Dimensions: 286mm diameter x 309mm height
  • Connection Size: 3/4" M BSP
  • Weight: 4.5 kg
  • Pre charge pressure: 2.5 bar
  • Maximum working pressure: 6.0 bar.
  • Vessels in accordance with EN13831.
  • Suitable for systems with a maximum system temperature of 120 °C.
  • Maximum temperature diaphragm: -10 / 90 °C.
  • Suitable for addition of glycol-based anti-freeze up to 50%.
  • In accordance with Pressure Equipment Directive 2014/68/EU.
  • Red (RAL 3002) epoxy powder coating.
More Information
Product Type Expansion Vessels
Custom Shipping 0.000000
Manufacturer Flamco UK
Warranty 15 Year Warranty
Dimensions Diameter [mm] 286 Height [mm] 309
Volume / Capacity 12 Litre
Product Code 16944
Orientation Vertical
System Type Heating
Max Temperature 90°C
