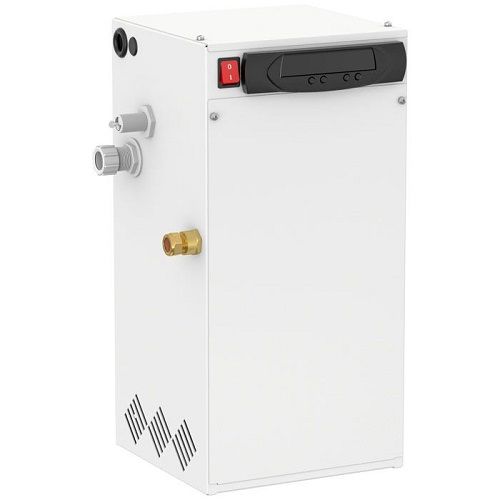

Flamco Flexfiller MIDI Digifiller (Preset 1.5bar) Pressurisation Unit - Single Pump

Compact digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed systems to meet minimum system pressure requirements.

The Digifiller is a wall-mounted top-up pressurisation unit with a 4 litre internal break tank and a flow rate of up to 12 l/min. Self-venting pumps and preset settings eliminate the requirement for traditional pressurisation unit commissioning. Ideal for industrial, commercial, and large-scale domestic use. Available preset to 0.5 bar, 1.0 bar, 1.5 bar or 2.0 bar topup (Delivery) pressure.

Operating Conditions

• System temperature range at point of connection: 5 ºC / 85 ºC.
• Ambient temperature range: 5 ºC / 40 ºC.
• Pressure rating: PN 10.
• Relative humidity 95% non-condensing.
• Noise Rating Data: < 75 dBA.

Features

• For system volumes up to 50,000 litres.
• Fluid Protection Category 5 (AB Weir Overflow).
• Pre-commissioned.
• Pre-set (Bar).
• Plug & play, but easily adjustable on site if required.
• Self-bleed pump.
• System fill mode.
• Onscreen Service Reminder - 12 Months.
• Electric pump, 230V 50Hz 1ph.
• Colour: White (RAL 9003).
• MODBUS RTU Communication Protocol.
• Password protected.
• Sequential programming menu.
• Pressure setting in 0.1 bar increments.
• Pump pulse option.
• Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
• Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
• Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
