Flamco Flexvent H 1/2 White Automatic Air Vent

SKU
27711
Special Price £20.78 £17.32 Regular Price £23.33 £19.44

Check Delivery is available in your area:



Free Standard Delivery On Most Products Over £100 ex VAT
SERVICE & MAINTENANCE

Need help with your order?

Phone icon

Call us today 0333 323 2329

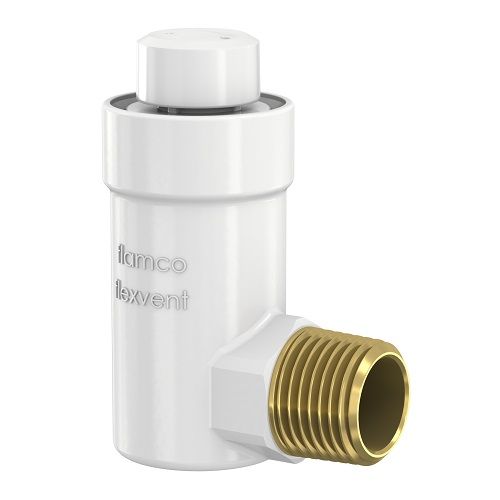

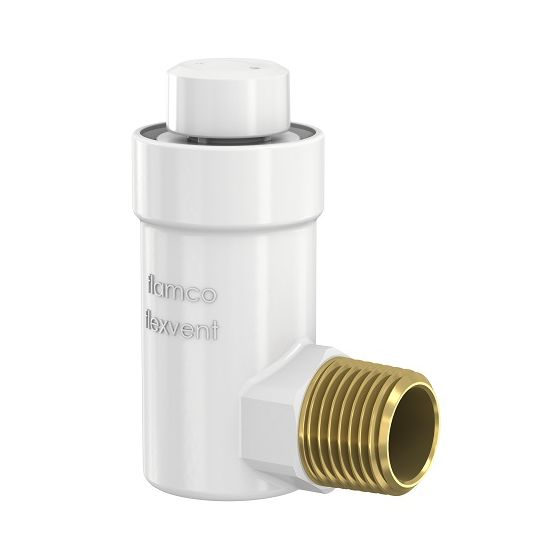

Flamco Flexvent H 1/2 White Automatic Air Vent



The compact, proven design has high efficiency and guaranteed operation for heating and air conditioning.

The water within the installation contains air which can form corrosion and reduce the thermal transfer. A Flexvent is fitted at places where the air collects. Float operated, the air is collected in the Flexvent causing the float to drop and open the air release valve. The water pressure then pushes the air out, the float rises and closes the valve. The air cushion in the upper part of each Flexvent protects the valve seat against contamination. The Flexvent H has a ½" 90°-angled connection which means it can be mounted directly on one of the radiator ports. With protective cap including expansion sealer rings to prevent leaks. Substantial distance between the water and the closing mechanism, reducing the chance of contamination. A Flexvent float vent is easy to fit in any installation due to its very small dimensions. The relatively large air cushion at the top of each type of Flexvent float vent protects the valve seat sufficiently against contamination, so that the Flexvent will not leak.



  • Minimum/Maximum working temperature: - 10 °C / 90 °C (peak load: 120 °C).
  • Minimum/Maximum working pressure: 0.2 / 10.0 bar (functional: 6.0 bar).
  • Suitable for water and water/glycol solutions up to 50% glycol.
More Information
Product Type Automatic Air Vent
Custom Shipping 0.000000
Manufacturer Flamco UK
Dimensions 31 Ø [mm] 50.5 Ø conn. inc. [mm] 70 H. [mm]
Product Code 27711
Connection Type 1/2"
