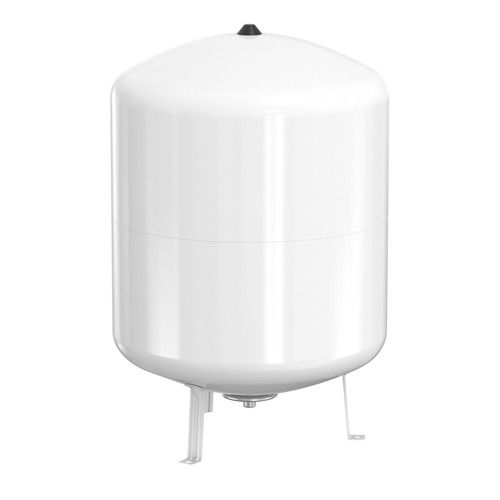

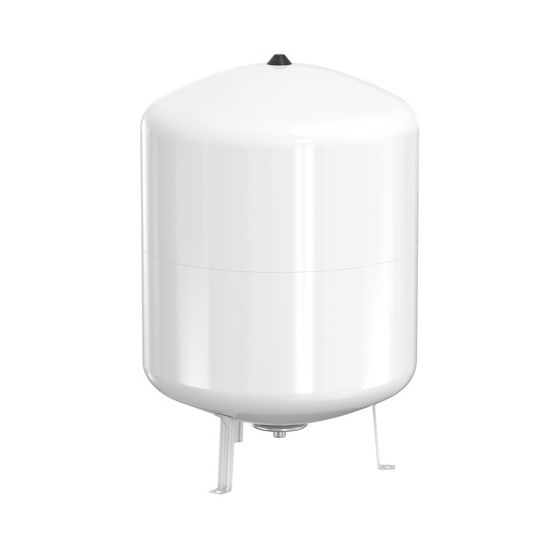

Flamco Flofix Potable 100 Litre Expansion Vessel
Flamco Flofix expansion vessels for pressurised systems are suitable for domestic and commercial sealed chilled and hot water systems. With its uncoated thread, the system connects easily and reliably. Nitrogen gas filling ensures longer pre-pressure retention. They are available with a capacity of 5 - 150 litres.
Specifications
- Flamco Flofix 100
- Volume: 100 litre
- Dimensions: 550mm x 630mm (WxH)
- Connection size: G 3/4" M
- Pre charge pressure: 2.7 bar
- Maximum working pressure: 10.0 bar.
- Min./ max. working temperature (bladder): -10 / 100 °C.
- Suitable for systems with a maximum system temperature of 110 °C.
- Suitable for addition of glycol-based anti-freeze up to 50%.
- Vessels in accordance with EN13831.
- In accordance with Pressure Equipment Directive 2014/68/EU.
- White (RAL 9010) epoxy powder coating.
- Diaphragm: EPDM.
- All welded construction.
- Stainless steel flange.
| Product Type | Expansion Vessels |
|---|---|
| Product Code | 25797 |
| Model Range | Flofix |
| Manufacturer | Flamco UK |
| Material | Bladder: EPDM |
| Warranty | 2 Year Warranty |
| Dimensions | 550 x 630mm (WxH) |
| Connection Type | 3/4" |
| Volume / Capacity | 100 Litre |
| Orientation | Vertical |
| Positioning | Floor standing |
| System Type | Potable (Drinking) |
| Vessel Pre-Charge Pressure | 2.7 bar |
