Flamco Flofix 8 Litre Potable Expansion Vessel

SKU
25790
Special Price £61.82 £51.52 Regular Price £77.28 £64.40

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

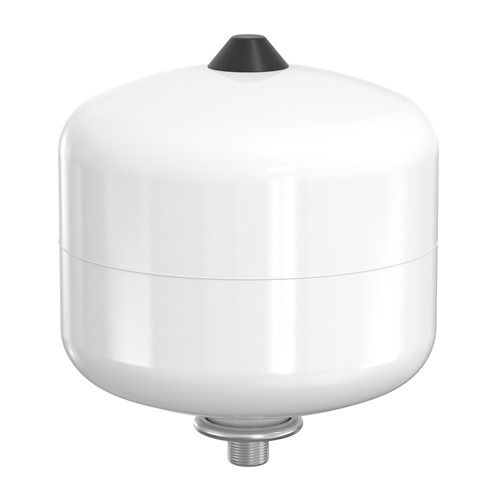

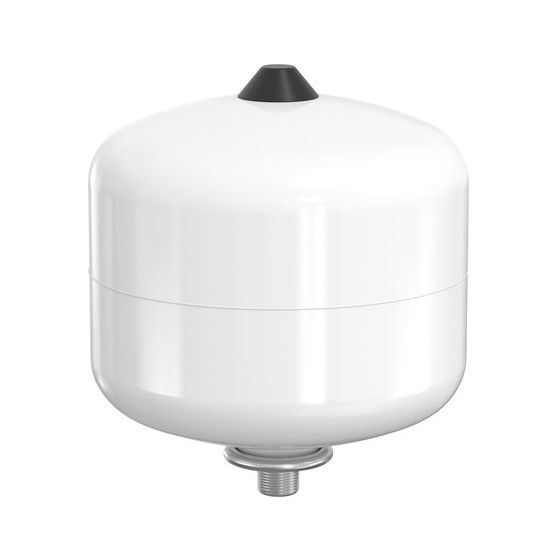

Flamco Flofix Potable 8 Litre Expansion Vessel (10 bar)


Flamco Flofix expansion vessels for pressurised systems are suitable for domestic and commercial sealed chilled and hot water systems. With its uncoated thread, the system connects easily and reliably. Nitrogen gas filling ensures longer pre-pressure retention. They are available with a capacity of 5 - 150 litres.


Specifications

  • Flamco Flofix 8
  • Volume: 8 litres
  • Dimensions: 235mm x 272mm (WxH)
  • Connection: 3/4" M BSP
  • Pre Charge Pressure: 2.7 bar
  • Maximum working pressure: 10.0 bar.
  • Suitable for systems with a maximum system temperature of 110 °C.
  • Suitable for addition of glycol-based anti-freeze up to 50%.
  • Vessels in accordance with EN13831.
  • In accordance with Pressure Equipment Directive 2014/68/EU.
  • White (RAL 9010) epoxy powder coating.

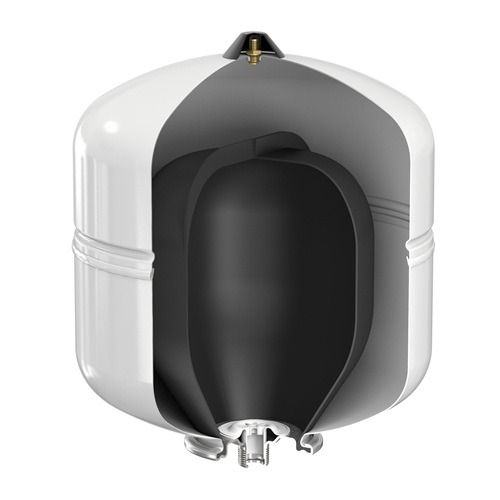

  • Diaphragm: EPDM.
  • All welded construction.
  • Stainless steel flange.
More Information
Product Type Expansion Vessels
Product Code 25790
Model Range Flofix
Manufacturer Flamco UK
Material Bladder: EPDM
Warranty 2 Year Warranty
Dimensions 235 x 272mm (WxH)
Connection Type 3/4"
Volume / Capacity 8 Litre
Orientation Vertical
System Type Potable (Drinking)
Vessel Pre-Charge Pressure 2.7 bar
Max Temperature 110°C
