Stuart Turner SPU 130 Mini Single Pump Pressurisation Unit Wall Mounted

Special Price £504.00 £420.00 Regular Price £912.00 £760.00

Check Delivery is available in your area:

Free Standard Delivery On Most Products Over £100 ex VAT
2 Year Warranty
2 - 3 working weeks

Need help with your order?

Phone icon

Call us today 0333 323 2329

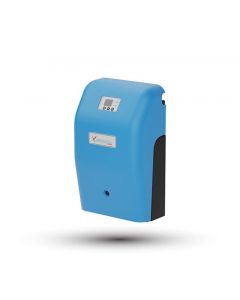

Stuart Turner SPU 130 Mini Single Pump Wall Mounted Pressurisation Unit

The Stuart Turner SPU 130 mini is a single pump wall mounted digital pressurisation unit, these pressurisation units represent the next generation of automatic filling and pressure maintenance solutions for sealed heating and chiller systems.

For ease of installation the mini range comes with a configurable option for the flexible hose outlet connection of either left or right handed. Stuart Turner pressurisation units are also WRAS compliant and provide category 5 backflow protection, with type AB air gap, weir overflow and warning pipe. The new and advanced digital controls featuring an easy to use menu system and backlit LCD display. With a 2 year Gurantee.

  • ISO 9001:2015
  • BS EN 60335 compliant
  • CE compliant

Suitable for maintaining pressure in large domestic and small commercial sealed heating systems, chilled water systems, refrigeration units and industrial cooling systems. SPU Mini units are exceptionally easy to install and commission and are housed in a compact and robust enclosure suitable for wall mounting.
Key Features

  • Suitable for sealed systems of up to 6,000 litres
  • Single (Duty) pump option
  • 3.0 bar cold fill pressure
  • 2 litre tank capacity
  • Compact design, wall mounting
  • Digital control system and LED display
  • Automated system top-up
  • Easy to install and set up
  • High flow, WRAS approved fill valve
  • Category 5 backflow protection, Type AB air gap , weir overflow and warning pipe
  • Outlet configurable for left or right connection with flexible hose (supplied)
  • Patent protected
  • 2 year warranty
More Information
Delivery Estimate 2 - 3 working weeks
KIWA Approval No
Product Type Pressurisation Units
Custom Shipping 0.000000
Manufacturer Stuart Turner
Model Range SPU Mini
Warranty 2 Year Warranty
Dimensions 293 x 145 x 403mm (WxDxH)
Power Supply 220V-240V Single Phase
Kw Rating 100 Watts
Noise Rating 60 dB(A)
Product Code 46719
Positioning Wall mounted
System Type Heating
Max Pressure 3 bar
