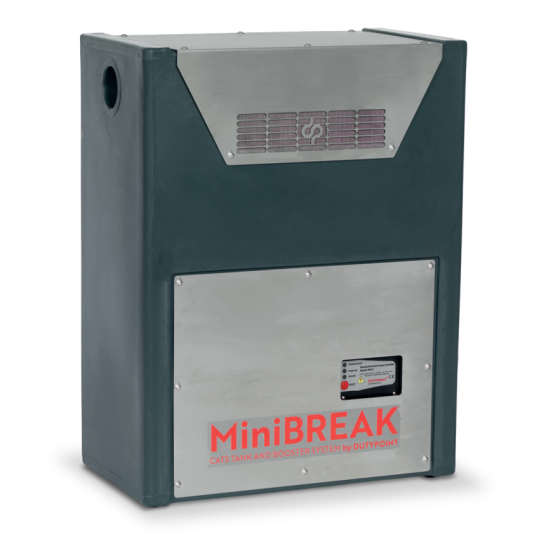

Dutypoint MiniBREAK MB1-38M-S CAT 5 Booster System

Dutypoint MiniBREAK MB1-38M-S CAT 5 Booster System

The Dutypoint MiniBREAK is a compact, water booster and tank system designed to protect against fluid category 5 backflow using an 'AB' air gap. This system, which complies with the Water Supply (Water Fittings) Regulations 1999, is a complete package housed in a single cabinet for either wall or floor mounting. The pump is controlled by an intuitive unit that starts when pressure drops and stops when the flow ceases. It also includes low-water protection. The system provides both open and closed volt-free contacts, which indicate when the pump is running. For specific wiring diagrams, please refer to the appropriate drawing.

Material

• Housing: LDPE

• Pump Body: PPE and brass

• Pipework and Fittings: Copper, brass, and stainless steel

Note: More detailed specifications are available upon request.

Product Overview

• IP65-rated controller inside a lockable enclosure

• Wall or floor mountable for flexible installation

• Low-water protection to prevent damage

• Operates on a single-phase power supply

• Volt-free contacts to indicate when the pump is running

Applications

This product is ideal for any application requiring Category 5 fluid backflow protection, such as:

• Wash-down areas in bin stores

• Laboratory water supplies

• Single hosepipe connections

• Dentist's rinsing equipment

• High-risk environments like mortuaries, abattoirs, zoos, and healthcare facilities
