Calpeda Cat 5 BTM 70E AGAP 80 Booster Set

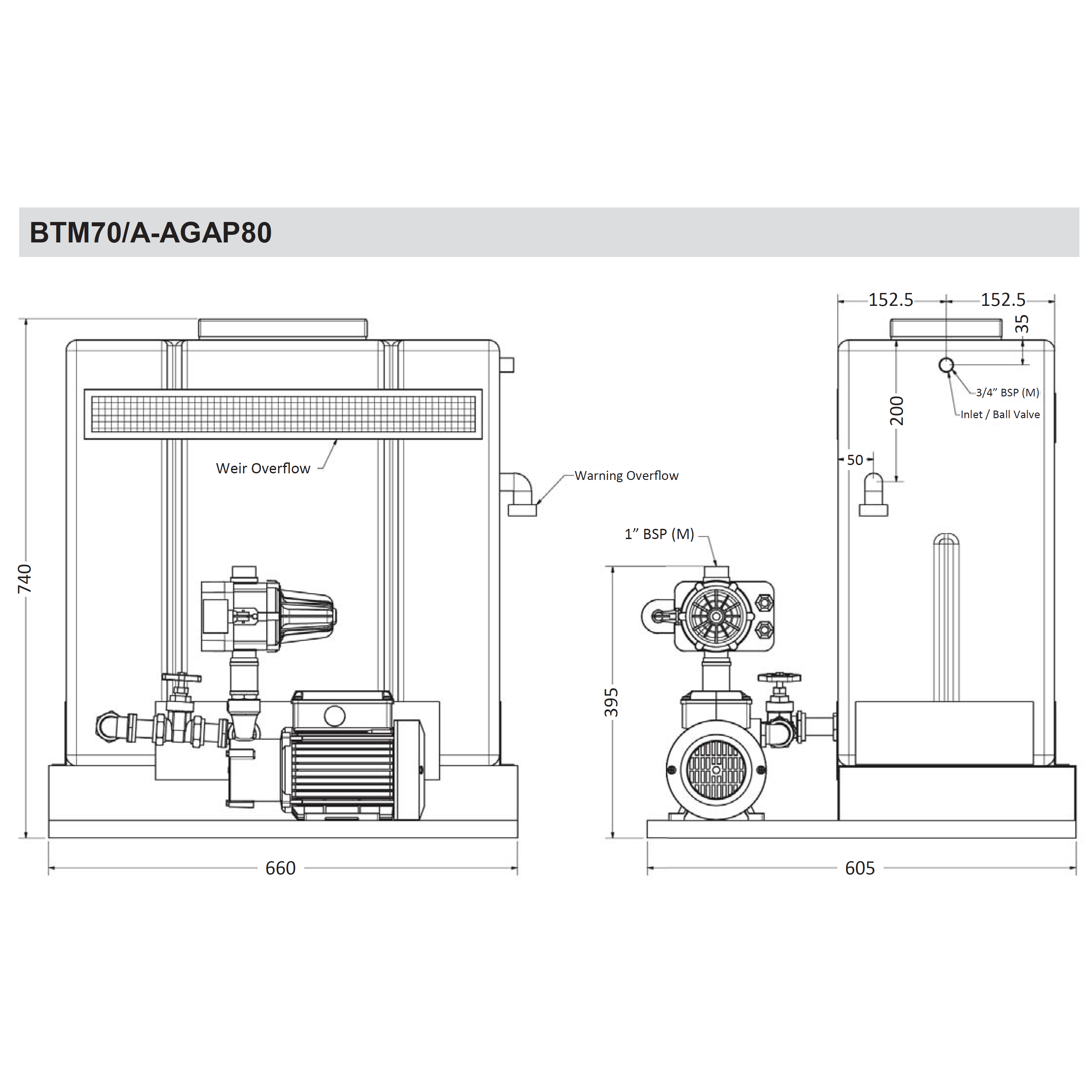

Calpeda Cat 5 BTM 70E AGAP 80 Booster Set Calpeda Cat 5 BTM 70E AGAP 80 Curve Calpeda Cat 5 BTM 70E AGAP 80 Booster Dimensions Calpeda CAT 5 BTM Walk Around Video

Calpeda Cat 5 BTM 70E AGAP 80 Booster Set

SKU
U30000600000
Special Price £1,394.40 £1,162.00 Regular Price £1,992.00

Check Delivery is available in your area:



SERVICE & MAINTENANCE
1 Year Warranty

Need help with your order?

Phone icon

Call us today 0333 323 2329

Calpeda Cat 5 BTM 70E AGAP 80 Single Pump Booster Set

Calpeda AGAP pump sets are a range of economically priced, fixed speed single pump cat 5 booster sets, consist of a bronze pump with automatic control system on a mild steel base with a 80 litre cold water storage cistern. The units are designed to prevent backflow of possible contaminated water into the mains water system, whilst maintaining a pressurised cold water supply to the equipment.

The Idromat controller is equipped with a flow and pressure sensor, built in check valve and 0 - 12 bar pressure gauge. Designed for automatic control of the pump and has dry running protection.

The Calpeda AGAP pump system with cistern is designed to meet the requirements of the water supply (water fittings) regulations 1999 in respect of a type AB air gap at the point of use or discharge of "quality non-domestic water”. A servicing valve with a relevant BSI kite mark, CE mark or WRAS approval must be fitted in the cistern water supply pipe prior to the float operated valve.



Model

Ball/Float

Cistern

Supply

BTM70E AGAP 80

3/4"

80

230/1/50

More Information
Product Type Booster Set
Booster Type Cat 5
Brand Calpeda
Warranty 1 Year Warranty
Dimensions 660 x 605 x 740mm
Power Supply 230V Single Phase
Volume / Capacity 80 Litre
Max Flow 1 l/s
Max Head 60m
Outlet Connection 1'' Threaded
Inlet Connection 3/4" Threaded
Positioning Floor standing
System Type Category 5
Pump Quantity 1 Pump
