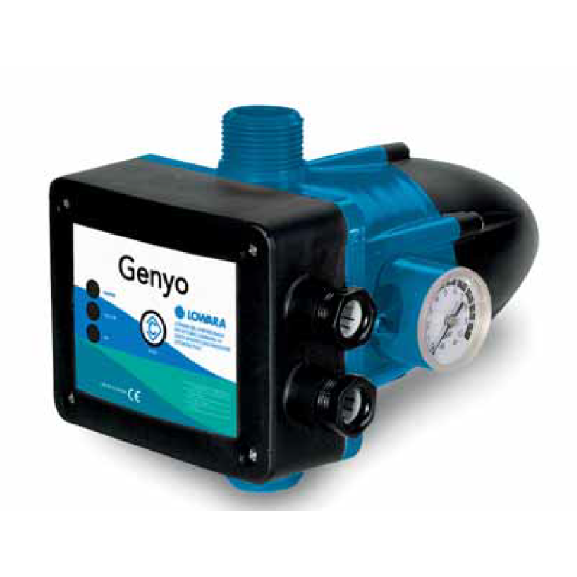

Lowara Genyo 16A R15-30 Electronic Pump Controller

Lowara Genyo 16A R15-30


Genyo is a new line of compact electronic devices that include pressure/flow switches for controlling and protecting electric pumps. Genyo is an electronic circuit-controlled diaphragm and counteracting spring system integrated with flow and pressure sensors. Genyo allows for automatic control of pump start-up and shutdown based on actual water demand, avoiding pressure fluctuations at delivery points with constant operating point. Genyo combines several system controls into a single device. There are two models available: 8A with three fixed starting pressures (GENYO 8A) and 16A with automatic restart (GENYO 16A).


Application

The Genyo Drives can be used in a variety of applications, including domestic pressure boosting (single and multi-family dwellings), small irrigation and gardening, and civil water systems ( campgrounds, sporting facilities etc.)

Some benefits to the Genyo drive include:

• Protection against dry running
• Little to no maintenance required
• Quick and easy installation
• Compact size
• Constant operating point with constant pressure that is stable and unchanging
• Back-up tank to compensate for minor hydraulic leaks or drips (patented system)
• Limited flow resistance

Exclusive for Genyo 16A model:

• Automatic restart in case of water failure
• Adjustable starting pressure

Specification

• Power supply: Single phase 220-240V
• Frequency: 50/60 Hz
• Max current: 16A inductive
• Protection class: IP65
• Adjustable Start Pressure(by means of special screw): R15-30 from 1.5 bar to 3 bar
• Operating Temperature: 0-60°C
• Max Pressure: 10 bar
• Inlet/Outlet Connections: R1"
